J300733 Mersen Fuses
Product Details
- Current Rating 1100 A
- Terminal Type End Contact with Threaded Holes
- Weight 2532.412 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Ampere Rating 1100 A
- Connection/Terminal Material Silver-Plated Brass
- Product Height 3.09 in
- Melting I2t 228 kA²s
- Indication System Type Striker
- Sell Pack Quantity 1 EACH
- Catalogue No. PC273UD13C11CTF
- Fuse Size 2x73
- Product Length 3.58 in
- AC Max I.R./Breaking Capacity: I1 100 kA
- Product Width 6.57 in
- Sell Pack Length 8.07 in
- Mounting Bolted
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Height 3.74 in
- Speed/Characteristic aR
- Product Weight 5.578 lb
- Sell Pack Weight 5.578 lb
- Rated voltage AC IEC 1250 V
- Indication System Yes
- Power Dissipation at Rated Current Value 244 W
- Sell Pack Width 3.54 in
- Clearing I2t At Rated Voltage 1860 kA²s
- Body/Insulating Material Ceramic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of J300733 on Advantage Electric Supply is $2,703.40. Order now.
About the product

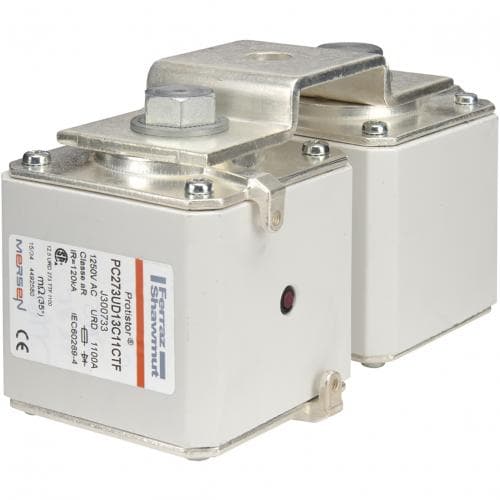

J300733 Mersen - Square Body High-Speed Fuse Protistor® 2x73 aR 1250VAC IEC 1100A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
The 1250V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
