K217129 Mersen Fuses
Product Details
- Current Rating 35 A
- Weight 49.94 g
- Trip Class High Speed
- Country Of Origin DE,SI
- Fuse Class Semiconductor
- Catalogue No. DIIIGR50V35
- Rated voltage DC IEC 440 V
- Sell Pack Quantity 5 EACH
- Clearing I2t At Rated Voltage 1100 A²s
- Power Dissipation at Rated Current Value 9.2 W
- Sell Pack Width 2.09 in
- Ampere Rating 35 A
- Melting I2t 490 A²s
- Sell Pack Height 1.18 in
- Mounting Clip
- AC Max I.R./Breaking Capacity: I1 100 kA
- Sell Pack Length 5.51 in
- Speed/Characteristic gR
- Body/Insulating Material Ceramic
- Sell Pack Weight 0.551 lb
- Fuse Size DIII
- Product Length 1.97 in
- Rated voltage AC IEC 500 V
- Product Weight 0.11 lb
- Product Diameter 1.06 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K217129 on Advantage Electric Supply is $151.51. Order now.
About the product

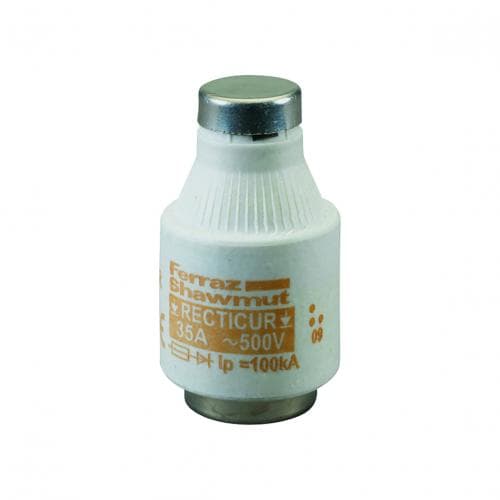

K217129 Mersen - High Speed Fuse-link D D0 RECTICUR Size DIII gR 500VAC 440VDC IEC 35A
Product type: Semiconductor Protection Fuses
The D fuse-system is the first generation of screw fuse-systems in the German DIN standard. It is still used in many installations. This D system comprises the sizes DII, DIII, DIV, DV.
Those D ultra-fast acting “gR” ranges are dedicated to semi-conductor protection, in applications where fuse-links are accessible to non-trained persons and can also be changed by them.
They are used for the protection of components such as diodes, thyristors or AC/DC motor drives. The “R” stands for the English word Rectifier. D fuse-links are available at the rated current range from 2A up to 200A.
*Insulated body suitable for high mechanical and thermal impacts
*Top and bottom contacts made of nickel-plated/silver-plated copper alloy
*Safe cut off short circuits and over currents due special design of fuse element
*Clear indication of operation condition due coloured indicator on top contact
*Low power dissipation
*Optimized size
*Resistant to aging
