M209311 Mersen Fuses
Product Details
- Current Rating 40 A
- Terminal Type Cylindrical
- Weight 3.748 lb
- Voltage 12 kV AC
- Country Of Origin FR,HU
- Fuse Class High Voltage IEC Fuses
- Fuse Size d=56mm, L=292mm
- Power Dissipation at Rated Current Value 54 W
- Indication System Yes
- Product Diameter 2.2 in
- Sell Pack Length 14.57 in
- Ampere Rating 40 A
- Mounting Clip
- Indication System Type Striker
- Body/Insulating Material Ceramic
- Product Length 14.09 in
- Sell Pack Height 2.56 in
- AC Max I.R./Breaking Capacity: I1 63 kA
- Min Interrupting Rating (MBC) 125 A
- Catalogue No. 45DB120V40P
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Quantity 1 EACH
- Sell Pack Weight 3.748 lb
- Clearing I2t At Rated Voltage 30 kA²s
- Rated voltage AC IEC 12 kV
- Connection/Terminal Type Cylindrical
- Product Weight 3.748 lb
- Sell Pack Width 2.76 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M209311 on Advantage Electric Supply is $859.04. Order now.
About the product

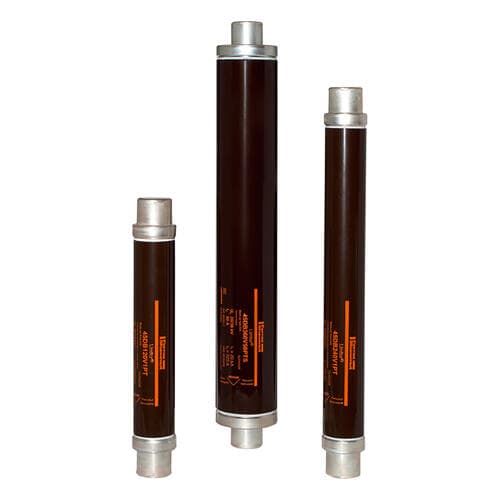

M209311 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T4 12kVAC IEC 40A d56mm, L292mm With Striker Standard 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-P HV fuses are back-up fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*Medium striker 80N/30mm
*Indoor and outdoor applications
*Energy efficency
*New cap design for a better compatibility with all types of clips and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
HV Transformer protection
