R200713 Mersen Fuses
Product Details
- Current Rating 25 A
- Weight 13.166 g
- Trip Class High Speed
- Country Of Origin DE
- Fuse Class Semiconductor
- Sell Pack Length 3.23 in
- Mounting Clip
- Power Dissipation at Rated Current Value 6 W
- Clearing I2t At Rated Voltage 180 A²s
- Product Length 1.42 in
- Fuse Size D02
- Body/Insulating Material Ceramic
- Product Weight 0.029 lb
- Speed/Characteristic gR
- Sell Pack Weight 0.717 lb
- Melting I2t 90 A²s
- Catalogue No. D02GR44V25
- Sell Pack Quantity 25 EACH
- Rated voltage DC IEC 440 V
- Product Diameter 0.6 in
- Rated voltage AC IEC 440 V
- Sell Pack Width 3.23 in
- Ampere Rating 25 A
- AC Max I.R./Breaking Capacity: I1 100 kA
- Sell Pack Height 1.57 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of R200713 on Advantage Electric Supply is $82.00. Order now.
About the product

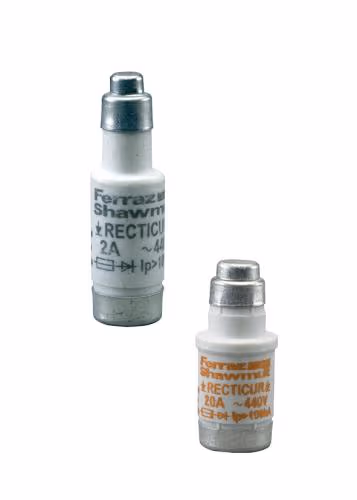

R200713 Mersen - High Speed Fuse-link D D0 RECTICUR Size D02 gR 440VAC 440VDC IEC 25A
Product type: Semiconductor Protection Fuses
The D0 fuse-system is the most modern of the screw systems in the German DIN standard. This system comprises the sizes D01, D02 and D03.
Those D0 ultra-fast acting “gR” ranges are dedicated to semi-conductor protection, in applications where fuse-links are accessible to non-trained persons and can also be changed by them.
They are used for the protection of components such as diodes, thyristors or AC/DC motor drives. The “R” stands for the English word Rectifier. D0 fuse-links are available at the rated current range from 2A up to 100A.
*Insulated body suitable for high mechanical and thermal impacts
*Top and bottom contacts made of nickel-plated/silver-plated copper alloy
*Safe cut off short circuits and over currents due special design of fuse element
*Clear indication of operation condition due coloured indicator on top contact
*Low power dissipation
*Optimized size
*Resistant to aging
