R300717 Mersen Fuses
Product Details
- Current Rating 280 A
- Terminal Type Slotted Blades
- Weight 540.26 g
- Trip Class High Speed
- Country Of Origin FR,MX
- Fuse Class Semiconductor
- Rated voltage AC UL 1300 V
- Indication System Yes
- Product Length 6.2 in
- Speed/Characteristic aR
- Connection/Terminal Type Slotted Blades
- Sell Pack Quantity 3 EACH
- Melting I2t 12 kA²s
- Body/Insulating Material Ceramic
- Sell Pack Width 6.1 in
- Fuse Size 71
- Catalogue No. A130UD71LLI280
- AC Max I.R./Breaking Capacity: I1 126 kA
- Sell Pack Height 2.36 in
- Rated voltage AC IEC 1250 V
- Product Weight 1.19 lb
- Sell Pack Length 6.5 in
- Mounting Bolted
- Indication System Type Striker
- Sell Pack Weight 3.571 lb
- Ampere Rating 280 A
- Connection/Terminal Material Silver-Plated Copper
- Product Height 2.22 in
- Clearing I2t At Rated Voltage 96 kA²s
- Power Dissipation at Rated Current Value 70 W
- Product Width 2.01 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

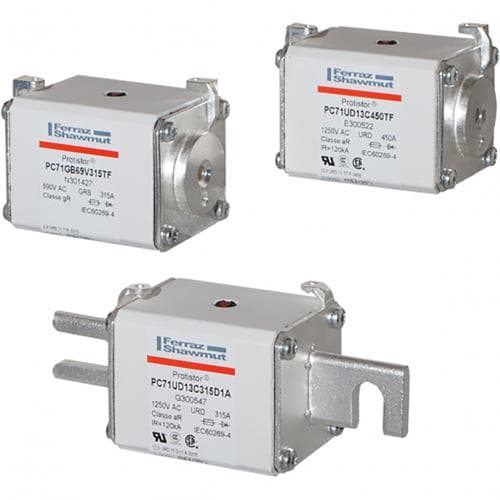

R300717 Mersen - Square Body High-Speed Fuse Protistor® Size 71 aR 1250VAC IEC 1300VAC UL 280A With Striker Slotted Blades long
Product type: Semiconductor Protection Fuses
These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
