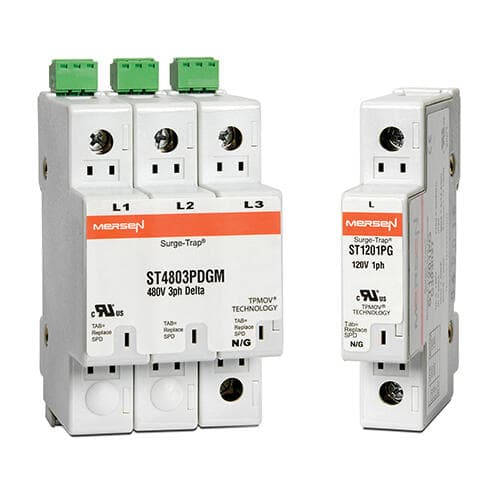

ST4803PYGM Mersen Electronic Components
Part#:ST4803PYGM
Alt. Part#:782001361563
Manufacturer:Mersen
Category:Electronic Components
Product Lifecycle:Active
Product description
SPD - Modular ST Series 480Y/277V L-L VPR 1800V L-L MCOV 640V 50 kA 4-pole Micro
Product Details
- AC or DC AC
- Nominal Discharge Current (In) (8/20) 20 kA
- Indication System Type Microswitch
- Connection/Terminal Type Box
- MCOV L-G 320 V
- Product Weight 1.1 lb
- VPR L-N 900 V
- Sell Pack Quantity 1 Each
- ROHS Compliant Yes
- Short Circuit Current Rating (SCCR) 200 (most models) kA
- Wiring range #6 to #14 AWG
- Number of Wires 4 Wire
- MCOV L-L 640 V
- VPR L-L 1800 V
- Product Height 2.7 in
- UL SPD Type Type 1 Component Assembly
- Nominal Operating Volt Rating (Un) 480Y/277 V
- Indication System Yes
- Connection/Terminal Material Zinc-Plated Steel
- Installation Mounting DIN Rail
- MCOV L-N 320 V
- VPR L-G 900 V
- Sell Pack Width 2.88 in
- Protection Modes L-G, L-L, L-N
- Max Discharge Current : Imax (8/20) 50 kA per phase
- System Configuration 3-Phase Wye
- Number of Poles 4-pole
- Housing Material PET (Polyethelene Terphthalate)
- MOV Response Time <25 ns
- Product Width 2.8 in
- Product Length 3.58 in
- Sell Pack Height 2.75 in
- Sell Pack Length 4.88 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ST4803PYGM on Advantage Electric Supply is $833.39. Order now.
