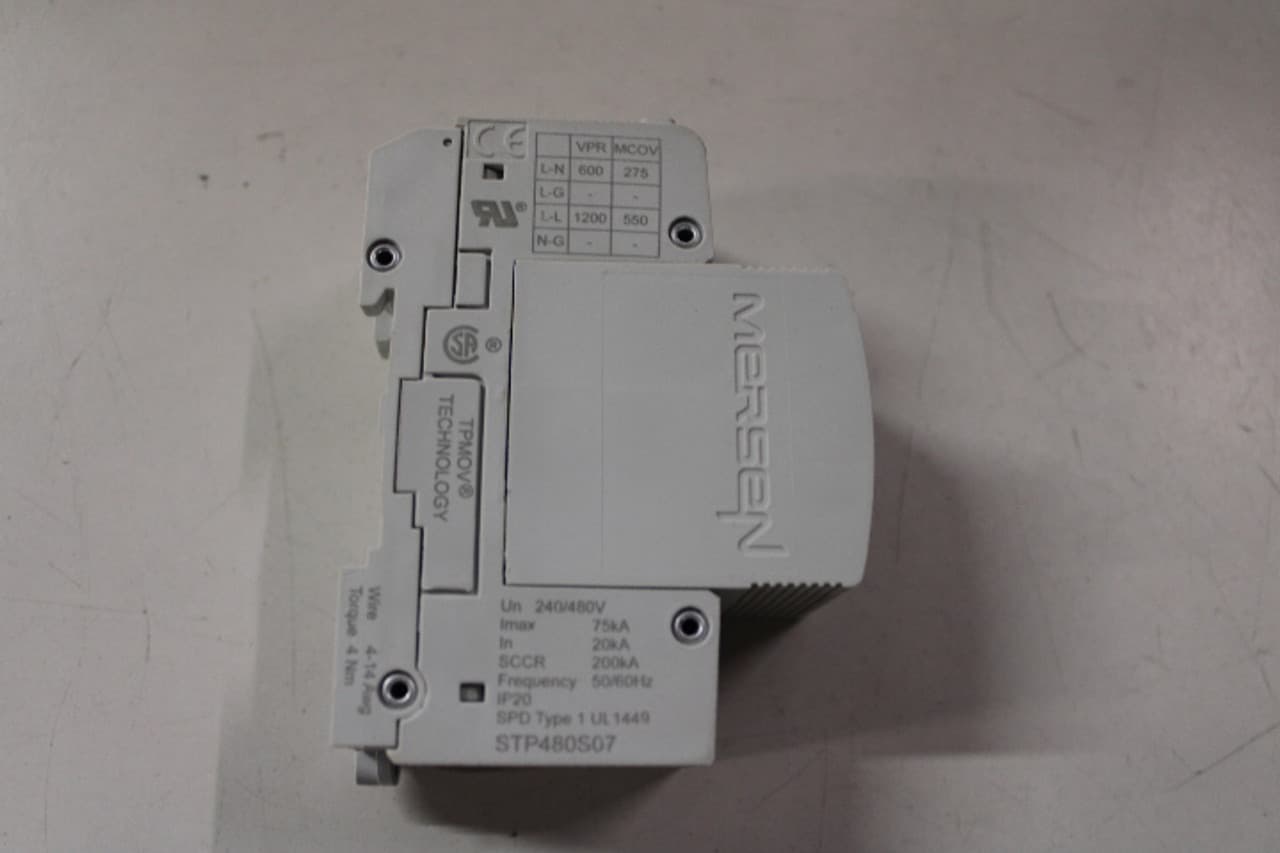

STP480S07 Mersen Industrial Automation Components

Product Details

• System Configuration
  Split Phase
• UL SPD Type
  Type 1 Component Assembly
• Housing Material
  PET (Polyethelene Terphthalate)
• Replacement Plug L1
  SP275U
• Sell Pack Quantity
  1 Each
• Sell Pack Height
  2.55 in
• Nominal Discharge Current (In) (8/20)
  20kA
• AC or DC
  AC
• Wiring range
  #4 to #14 AWG
• MCOV L-N
  275 V
• Replacement Plug L2
  SP275U
• Product Length
  4.19 in
• Max Discharge Current : Imax (8/20)
  75kA
• Frequency
  50/60 Hz
• Number of Wires
  2 Wire
• VPR L-N
  900 V
• Product Height
  2.81 in
• Short Circuit Current Rating (SCCR)
  200 kA
• Torque Rating
  35.4 lb-in
• VPR L-L
  1800 V
Sell Pack Weight
0.79 lb
Sell Pack Length
3.94 in
Protection Modes
L-L
Number of Poles
2-Pole
MOV Response Time
<25 ns
Installation Mounting
DIN Rail
Product Width
1.38 in
ROHS Compliant
Yes
Nominal Operating Volt Rating (Un)
240/480 V
Connection/Terminal Type
Box
MCOV L-L
550 V
Product Weight
0.75 lb
Sell Pack Width
1.62 in
Shipping Width:
5.00 In.
Type:
CIRCUIT BREAKER SURGE PROTECTIVE DEVICE
UPC:
78200147799
Shipping Length:
4.00 In.
Shipping Weight:
0.60 lbs.
Shipping Height:
2.00 In.
