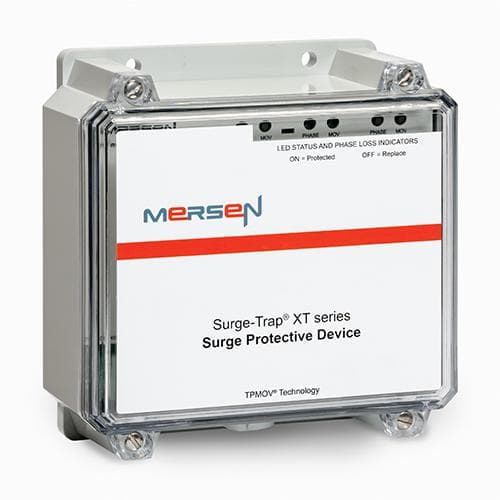

STXT240H10A Mersen Electronic Components

Name: STXT240H10A
Brand: Mersen
Price: 3750.1 USD
Availability: BackOrder

STXT240H10A on Advantage Electric Supply

Part#:STXT240H10A

Alt. Part#:782001471064

Manufacturer:Mersen

Category:Electronic Components

Product Lifecycle:Active

Product description

SPD - Type 1 ST-XT 240/120V L-L VPR 1000V L-L MCOV 300/470V 100 kA LED + Audible

Product Details

UL SPD Type
Type 1
Protection Modes
L-G, L-L, L-N, N-G
System Configuration
High Leg Delta
VPR L-N
600/1200 V
Frequency
50/60 Hz
Enclosure NEMA Type
4X Non-Metallic
VPR L-L
1000 V
Product Width
7.08 in
Short Circuit Current Rating (SCCR)
200 kA
Connection/Terminal Type
Box
MCOV N-G
150 V
Sell Pack Quantity
1 Each
ROHS Compliant
Yes
AC or DC
AC
Installation Mounting
Panel or Wall Mount
Product Weight
3.8 lb
Sell Pack Height
4 in
Max Discharge Current : Imax (8/20)
100 kA per phase
Nominal Discharge Current (In) (8/20)
20 kA
VPR L-G
700/1200 V

Product Height

3.68 in

Indication System Type

LED and Remote Audible Alarm

MCOV L-G

150/320 V

VPR N-G

600 V

Sell Pack Length

9.19 in

Indication System

Yes

Housing Material

Polycarbonate

MCOV L-L

300/470 V

Sell Pack Weight

3.99 lb

Nominal Operating Volt Rating (Un)

240/120 V

MCOV L-N

150/320 V

Product Length

7.4 in

Sell Pack Width

9.19 in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of STXT240H10A on Advantage Electric Supply is $3,750.10. Order now.
