STXT480Y20A Mersen Electronic Components
Part#:STXT480Y20A
Alt. Part#:782001471163
Manufacturer:Mersen
Category:Electronic Components
Product Lifecycle:Active
Product description

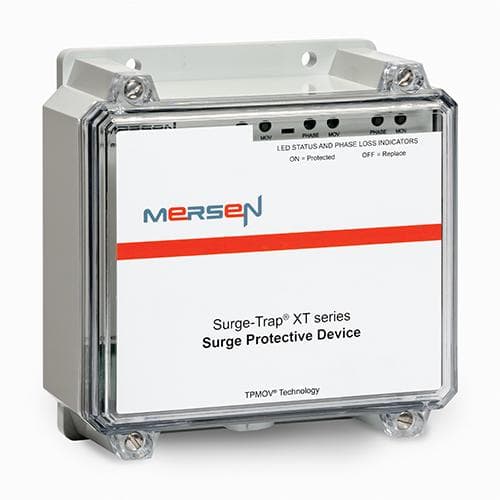

SPD - Type 1 ST-XT 480Y/277V L-L VPR 2000V L-L MCOV 640V 200 kA LED + Audible
Product Details
- Frequency 50/60 Hz
- Indication System Yes
- Housing Material Polycarbonate
- VPR L-G 1200 V
- Product Weight 4.2 lb
- Sell Pack Height 4 in
- Nominal Operating Volt Rating (Un) 480Y/277 V
- Max Discharge Current : Imax (8/20) 200 kA per phase
- Connection/Terminal Type Box
- MCOV L-L 640 V
- VPR L-N 1200 V
- Sell Pack Width 9.19 in
- UL SPD Type Type 1
- AC or DC AC
- Indication System Type LED and Remote Audible Alarm
- MCOV L-G 320 V
- MCOV L-N 320 V
- Product Length 7.4 in
- Sell Pack Quantity 1 Each
- ROHS Compliant Yes
- System Configuration 3-Phase Wye
- Enclosure NEMA Type 4X Non-Metallic
- MCOV N-G 320 V
- VPR N-G 1200 V
- Product Height 3.68 in
- Sell Pack Length 9.19 in
- Nominal Discharge Current (In) (8/20) 20 kA
- Protection Modes L-G, L-L, L-N, N-G
- Short Circuit Current Rating (SCCR) 200 kA
- Installation Mounting Panel or Wall Mount
- VPR L-L 2000 V
- Product Width 7.08 in
- Sell Pack Weight 4.41 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of STXT480Y20A on Advantage Electric Supply is $4,773.47. Order now.
