STZ208Y30BXT Mersen Electronic Components

Name: STZ208Y30BXT
Brand: Mersen
Price: 21448.17 USD
Availability: BackOrder

STZ208Y30BXT on Advantage Electric Supply

Part#:STZ208Y30BXT

Alt. Part#:0782001481162

Manufacturer:Mersen

Category:Electronic Components

Product Lifecycle:Active

Product description

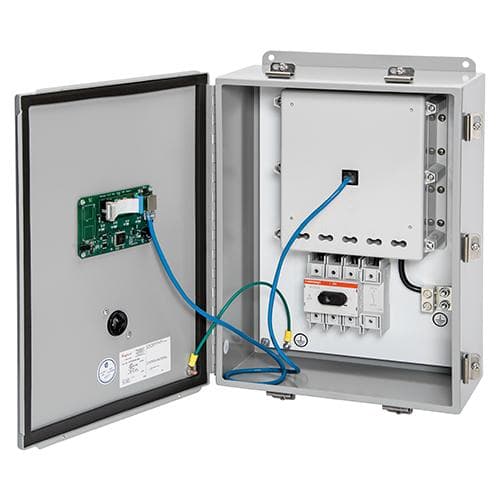

SPD - Type 1 STZ 208Y/120V 300kA BXT

Product Details

Nominal Operating Volt Rating (Un)
208Y/120 V
Short Circuit Current Rating (SCCR)
200 kA
MCOV L-G
150 V
Product Width
12.98 in
Nominal Discharge Current (In) (8/20)
20kA
Installation Mounting
Panel or Wall Mount
VPR N-G
900 V
Sell Pack Width
16.63 in
System Configuration
3-Phase Wye
Enclosure NEMA Type
4X Stainless
Product Length
17.52 in
UL SPD Type
Type 1
Connection/Terminal Type
Box
MCOV N-G
150 V
Product Weight
35.3 lb
Sell Pack Length
21.88 in
Protection Modes
L-G, L-L, L-N, N-G
Indication System Type
LED and Remote Audible Alarm
VPR L-L
1500 V
Sell Pack Quantity
1 Each

ROHS Compliant

Yes

MCOV L-L

300 V

VPR L-G

900 V

Sell Pack Height

11.25 in

Frequency

50/60 Hz

AC or DC

Indication System

Yes

MCOV L-N

150 V

Product Height

8.06 in

Max Discharge Current : Imax (8/20)

300 kA per phase

Housing Material

Stainless Steel

VPR L-N

900 V

Sell Pack Weight

35.3 lb

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of STZ208Y30BXT on Advantage Electric Supply is $21,448.17. Order now.
