T1014570 Mersen Fuses

Name: T1014570
Brand: Mersen
Price: 71.37 USD
Availability: BackOrder

Part#:T1014570

Alt. Part#:3605340500936

Manufacturer:Mersen

Category:Fuses

Product Lifecycle:Active

Product description

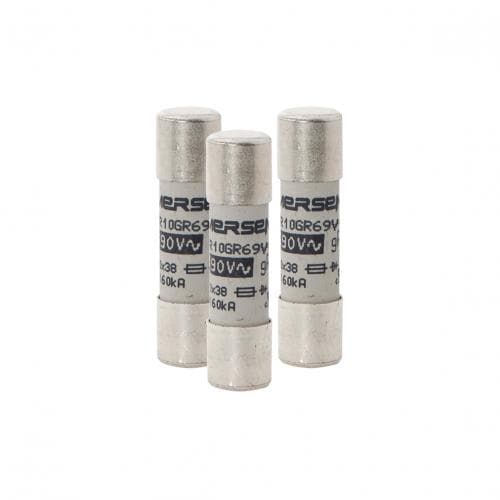

T1014570 Mersen - High-Speed Cylindrical Fuse Protistor® Size 10x38 gR 690VAC IEC 2.5A

Product Details

Current Rating
2.5 A
Terminal Type
Ferrule
Weight
8.172 g
UL Certification
YES
Trip Class
High Speed
Country Of Origin
FR
Fuse Class
Semiconductor
Ampere Rating
2.5 A
Speed/Characteristic
gR
Melting I2t
1.65 A²s
Power Dissipation at Rated Current Value
1.4 W
Connection/Terminal Type
Ferrule
Product Diameter
0.41 in
Sell Pack Width
2.17 in
Sell Pack Length
3.15 in
Catalogue No.
FR10GR69V2.5
Fuse Size
10x38
AC Max I.R./Breaking Capacity: I1
160 kA
Connection/Terminal Material
Silver-Plated Copper
Product Weight
0.018 lb

Sell Pack Weight

0.176 lb

Sell Pack Height

0.59 in

Rated voltage AC IEC

690 V

Mounting

Clip

Clearing I2t At Rated Voltage

4.5 A²s

Body/Insulating Material

Ceramic

Product Length

1.54 in

Sell Pack Quantity

10 EACH

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T1014570 on Advantage Electric Supply is $71.37. Order now.

About the product

T1014570 Mersen - High-Speed Cylindrical Fuse Protistor® Size 10x38 gR 690VAC IEC 2.5A

Product type: Semiconductor Protection Fuses

The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.

International 10x38 mm (1-1/2" x 13/32") for worldwide acceptance

*gR Class according to IEC 60269-4 and VDE 636-23

*Low I²t for improved semiconductor protection

*Eliminate all overloads

*Extremely fast acting

*Current limiting

*Excellent cycling capability

T1014570 Related Documents

DS-Semiconductor-Protection-Cylindrical-Fuses-Protistor-Size-10x38-gR-690VAC-EN (EN,PDF,2368Ko).pdf
