T209363 Mersen Fuses
Product Details
- Current Rating 10 A
- Terminal Type Cylindrical
- Weight 5.952 lb
- Voltage 36 kV AC
- Country Of Origin HU
- Fuse Class High Voltage IEC Fuses
- Rated voltage AC IEC 36 kV
- AC Max I.R./Breaking Capacity: I1 32 kA
- Indication System Type Striker
- Product Diameter 2.2 in
- Sell Pack Width 2.76 in
- Fuse Size d=56mm, L=537mm
- Clearing I2t At Rated Voltage 2 kA²s
- Indication System Yes
- Body/Insulating Material Ceramic
- Sell Pack Quantity 1 EACH
- Sell Pack Height 2.76 in
- Catalogue No. 45DB360V10PD
- Mounting Clip
- Power Dissipation at Rated Current Value 65 W
- Connection/Terminal Type Cylindrical
- Product Length 23.74 in
- Sell Pack Length 24.41 in
- Ampere Rating 10 A
- Min Interrupting Rating (MBC) 34 A
- Connection/Terminal Material Silver-Plated Copper
- Product Weight 5.952 lb
- Sell Pack Weight 5.952 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T209363 on Advantage Electric Supply is $778.83. Order now.
About the product

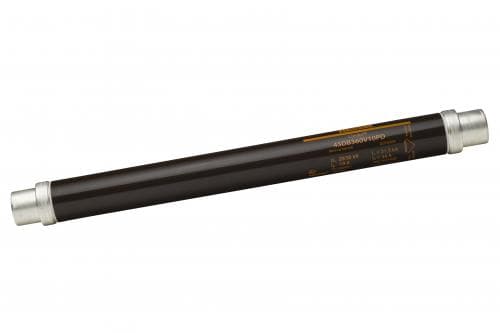

T209363 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 36kVAC IEC 10A d56mm, L537mm With Striker 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-PD HV fuses are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers against effects of short-circuit currents.
The VDE 0670 T402 defines fuses between 6.3A and 160A, for other ratings, thanks to consult Limitor®-P HV fuses range.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*medium striker 80N/30mm
*Energy efficency
*New cap design for a better compatibility with all types of clips
*and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
*Indoor and outdoor applications
HV Transformer protection
T209363 Related Documents
Similar products from: Mersen Fuses
Manufacturer warranty
T209363 Mersen
$778.83
Your price can be lower.
Log in or Create account to check your discount
Backordered – place your order now, and we’ll take care of the rest
Select Qty:
$778.83
$778.83 each
Your order is guaranteed – we’ll keep you updated on delivery timelines
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare T209363 with other Fuses products
Current Rating
Terminal Type
Weight
Voltage
Country Of Origin
Fuse Class
Rated voltage AC IEC
AC Max I.R./Breaking Capa...
Indication System Type
Product Diameter
Selected product
T209363
Mersen
T209363 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 36kVAC IEC 10A d56m...
Current Rating10 A
Terminal TypeCylindrical
Weight5.952 lb
Voltage36 kV AC
Country Of OriginHU
Fuse ClassHigh Voltage IEC Fuses
Rated voltage AC IEC36 kV
AC Max I.R./Breaking Capacity: I132 kA
Indication System TypeStriker
Product Diameter2.2 in
L1037862
Mersen

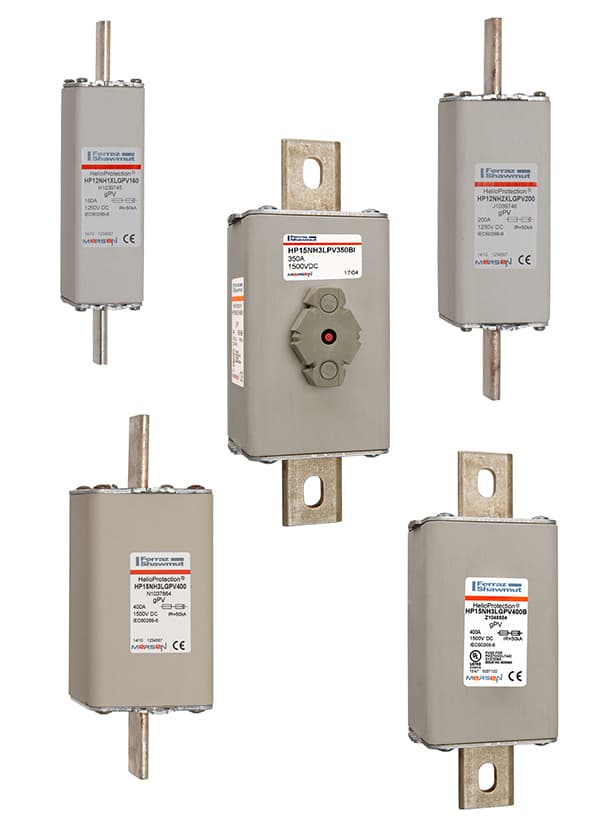

L1037862 Mersen Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 315A With Plain Blades For Clip
