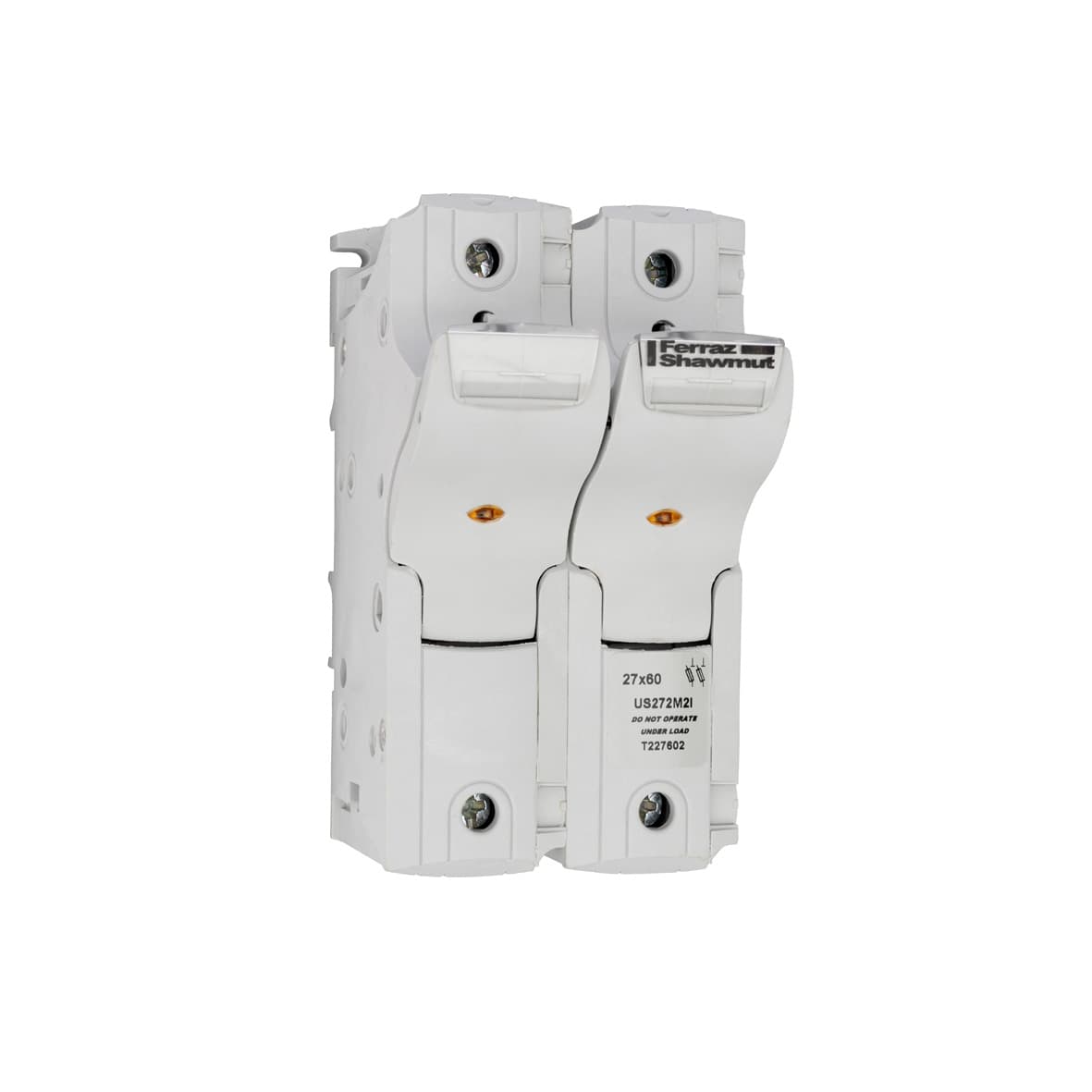

T227602 Mersen Fuse Holders
Part#:T227602
Alt. Part#:3605340275667
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
T227602 Mersen - Fuse Holder UltraSafe™ 800VAC 800VDC UL Fuse size 27x60 2-Pole Visual Indicator 2x Microswitch Faston Lugs IP20
Product Details
- Number of Poles 2 Pole
- Current Rating 140 A
- Weight 303.272 g
- Voltage 800 VAC
- Fuse Size 27x60
- Torque Rating 30.98 lb-in
- Installation Mounting DIN rail acc. EN 60715
- Design Details double pole, 2 microswitches
- Indication System Type Visual Indicator Microswitch
- Product Weight 0.668 lb
- Sell Pack Width 6.22 in
- Catalogue No. US272M2I
- Conventional Free Air thermal Current With Fuse-Links Ith 140 A
- Sell Pack Weight 0.668 lb
- Rated voltage DC IEC 800 V
- Rated voltage AC UL 800 V
- Max Power dissipation of Fuse Links Pn 11 W
- Ampere Rating 140 A
- Indication System Yes
- Comments Wiring tool : PZ3 or flat 8x1.2mm screw drivers recommended
- Sell Pack Height 3.94 in
- ROHS Compliant Yes
- Product Length 3.68 in
- Rated Impulse Withstand Voltage 8
- Rated voltage DC UL 800 V
- Number of Poles 2-Pole
- Product Width 3.15 in
- Rated voltage AC IEC 800 V
- Rated Insulation Voltage 800 V
- Sell Pack Quantity 1 EACH
- Sell Pack Length 6.5 in
- Product Height 5.88 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T227602 on Advantage Electric Supply is $736.16. Order now.
About the product
T227602 Mersen - Fuse Holder UltraSafe™ 800VAC 800VDC UL Fuse size 27x60 2-Pole Visual Indicator 2x Microswitch Faston Lugs IP20 | The innovative and comprehensive Modulostar® range of Mersen
fuse-holders.
Modular fuse-holders are finger-safe as per IEC standards to an IP20
grade of protection. Including fuse changing, with the flick of a finger.
Modular fuse-holders are available in 1, 2 or 3 poles, with or without
visual blown fuse indicators, in IEC + UL version.
Multi-pole units can also be field assembled by ordering pin-ties
assembly kit. The range offers the possibility to use microswitches
(supplied with the holders or ordered separatly) to allow remote
indication. Modulostar® range is made of tough and durable
thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*Designs available for DIN rail mounting and direct mounting on board
*Modular design
*Multi-pole assembly kit available
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 800V using semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.
*Non-load operation
