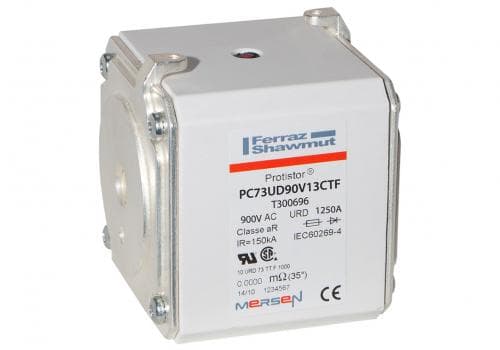

Mersen T300696 T300696 Mersen - Square Body High-Speed Fuse Protistor® Size 73 aR 900VAC IEC 1000VAC UL 1250A With Striker Flush ends metric threads
Mersen

Part#:T300696

Manufacturer:Mersen

Alt. Part#:3605340332377

Product Lifecycle:Active

Get a quick Quote!

T300696 Mersen - Square Body High-Speed Fuse Protistor® Size 73 aR 900VAC IEC 1000VAC UL 1250A With Striker Flush ends metric threads

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the T300696 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    1250 A
  • Terminal Type
    End Contact with Threaded Holes
  • Weight
    1221.26 g
  • Trip Class
    High Speed
  • Country Of Origin
    FR,MX
  • Fuse Class
    Semiconductor
  • Sell Pack Height
    2.95 in
  • Sell Pack Length
    4.92 in
  • Sell Pack Width
    4.33 in
  • Sell Pack Weight
    2.69 lb
  • Sell Pack Quantity
    1 EACH
  • Product Height
    3.09 in
  • Product Length
    2.91 in
  • Product Width
    2.87 in
  • Product Weight
    2.69 lb
  • Body/Insulating Material
    Ceramic
  • Connection/Terminal Type
    End Contact with Threaded Holes
  • Connection/Terminal Material
    Silver-Plated Brass
  • Indication System Type
    Striker
  • Indication System
    Yes
  • Power Dissipation at Rated Current Value
    186 W
  • AC Max I.R./Breaking Capacity: I1
    150 kA
  • Clearing I2t At Rated Voltage
    3080 kA²s
  • Melting I2t
    585 kA²s
  • Mounting
    Bolted
  • Fuse Size
    73
  • Speed/Characteristic
    aR
  • Catalogue No.
    PC73UD90V13CTF
  • Rated voltage AC IEC
    900 V
  • Ampere Rating
    1250 A
  • Rated voltage AC UL
    1000 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


T300696 Description

T300696 Mersen - Square Body High-Speed Fuse Protistor® Size 73 aR 900VAC IEC 1000VAC UL 1250A With Striker Flush ends metric threads

Product type: Semiconductor Protection Fuses

These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability
