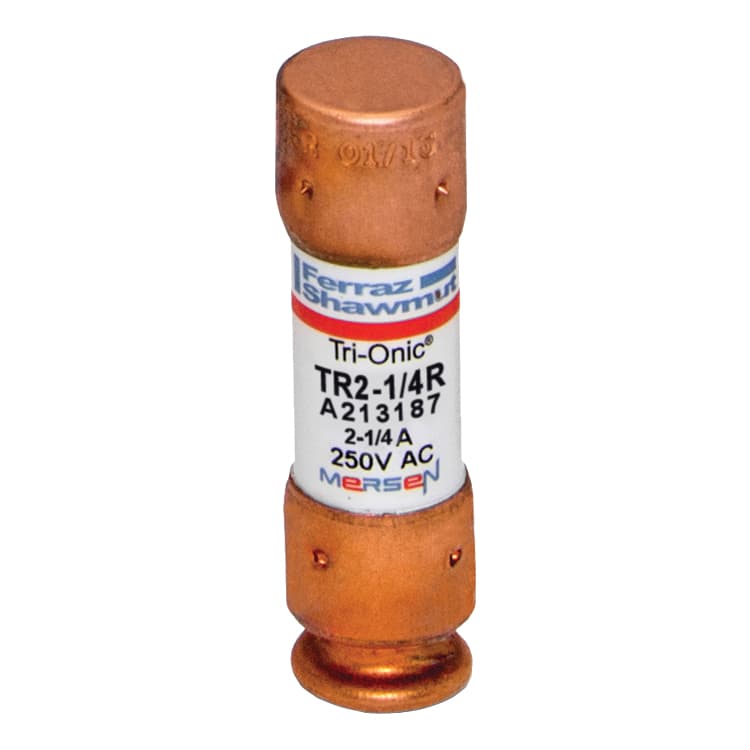

TR2-1/4R Mersen Fuses
Product Details
- Current Rating 2.25 A
- Terminal Type Ferrule
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 16.7795 g
- Voltage 250 VAC / 250 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Frequency 50/60 Hz
- AC Max I.R./Breaking Capacity: I1 200 kA
- Sell Pack Quantity 10 Each
- Rated voltage AC UL 250 V
- Speed/Characteristic Time Delay
- Product Weight 0.05 lb
- Product Length 2 in
- Fuse Class Class RK5
- Mounting Clip
- Product Diameter 0.56 in
- Sell Pack Height 1.19 in
- Rated voltage DC UL 250 V
- Connection/Terminal Material Copper
- Sell Pack Width 2.06 in
- ROHS Compliant Yes
- Body/Insulating Material PolyTube
- Sell Pack Length 3 in
- Ampere Rating 2.25 A
- Connection/Terminal Type Ferrule
- Sell Pack Weight 0.53 lb
- Series: TR-R
- Length: 2 Inch
- Shipping Width: 1.00 In.
- Characteristics: Time Delay
- Amps: 32 A
- Volts: 250 VAC/VDC
- Shipping Length: 2.00 In.
- Diameter: 9/16 Inch
- UPC: 782001747657
- Time Delay: Voltage Rating
- Shipping Height: 1.00 In.
- Interrupting Rating: 200 kA (AC)
- Shipping Weight: 0.05 lbs.
- Terminal Type: Ferrule
- Type: Class RK5
- Approval: UL 248-12
