TRM3-2/10 Mersen Fuses

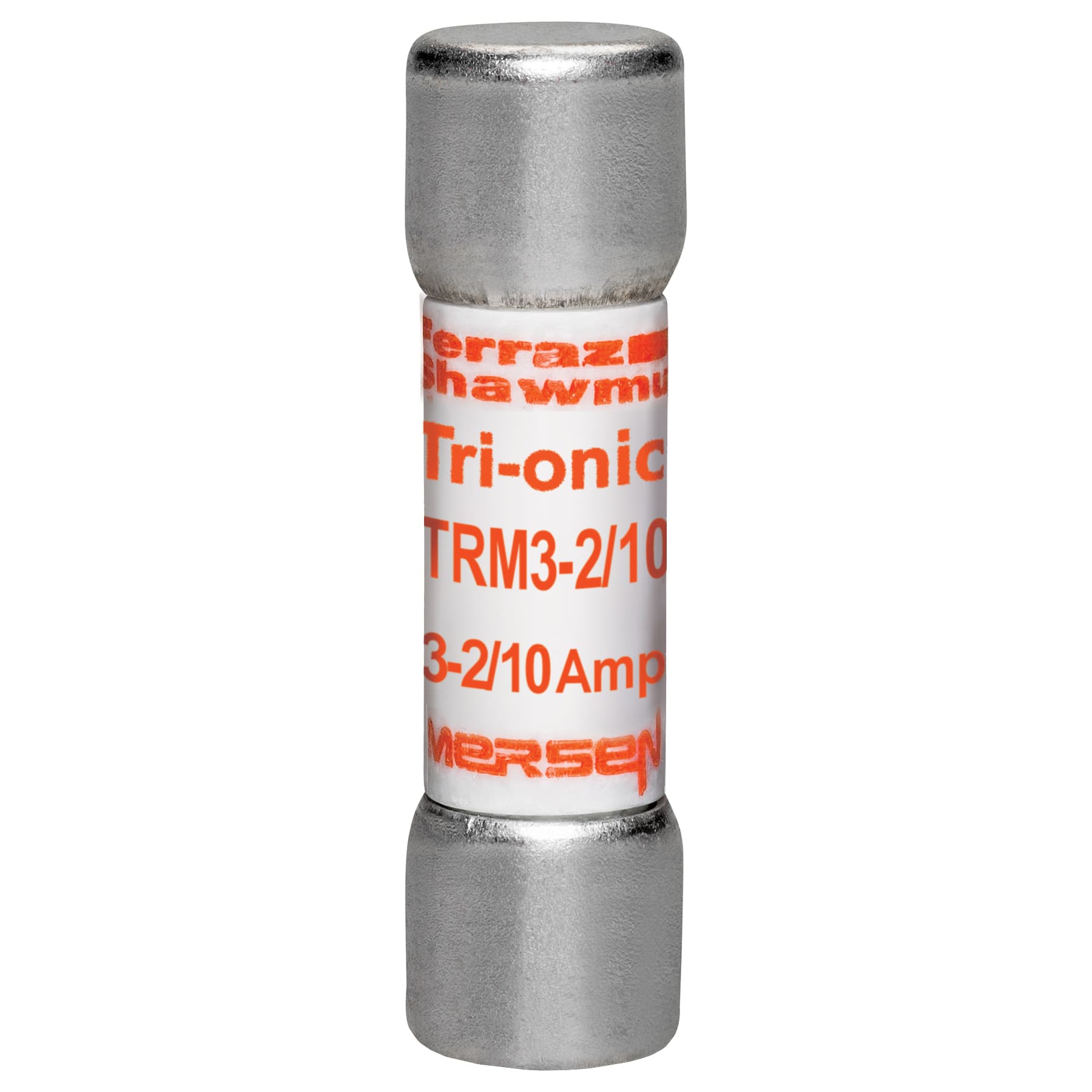

Mersen TRM3-2/10 TRM3-2/10 Mersen - Fuse TRM - Midget - Time-Delay 250VAC 3.2A Ferrule Tri-Onic®
Mersen

Part#:TRM3-2/10

Manufacturer:Mersen

Alt. Part#:782001743376

Product Lifecycle:Active

Get a quick Quote!

TRM3-2/10 Mersen - Fuse TRM - Midget - Time-Delay 250VAC 3.2A Ferrule Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRM3-2/10 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    3.2 A
  • Terminal Type
    Ferrule
  • Material
    GMG
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    5.8955 g
  • Voltage
    250 VAC
  • Approvals
    *UL listed to standard 248-14 File E33925 *CSA Certified to Standard C22.2 No. 248.14
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Midget
  • Sell Pack Height
    2.12 in
  • Ampere Rating
    3.2 A
  • Sell Pack Weight
    0.13 lb
  • Sell Pack Quantity
    10 Each
  • Sell Pack Length
    1.62 in
  • Sell Pack Width
    0.88 in
  • Product Length
    1.5 in
  • Connection/Terminal Type
    Ferrule
  • Product Diameter
    0.41 in
  • Product Weight
    0.012 lb
  • Body/Insulating Material
    GMG
  • ROHS Compliant
    Yes
  • Rated voltage AC UL
    250 V
  • Connection/Terminal Material
    Tin-Plated Copper
  • AC Max I.R./Breaking Capacity: I1
    10 kA
  • Speed/Characteristic
    Time Delay
  • Fuse Class
    Midget
  • Mounting
    Clip

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TRM3-2/10 Description

TRM3-2/10 Mersen - Fuse TRM - Midget - Time-Delay 250VAC 3.2A Ferrule Tri-Onic®
