TRS1-6/10RDC Mersen Fuses

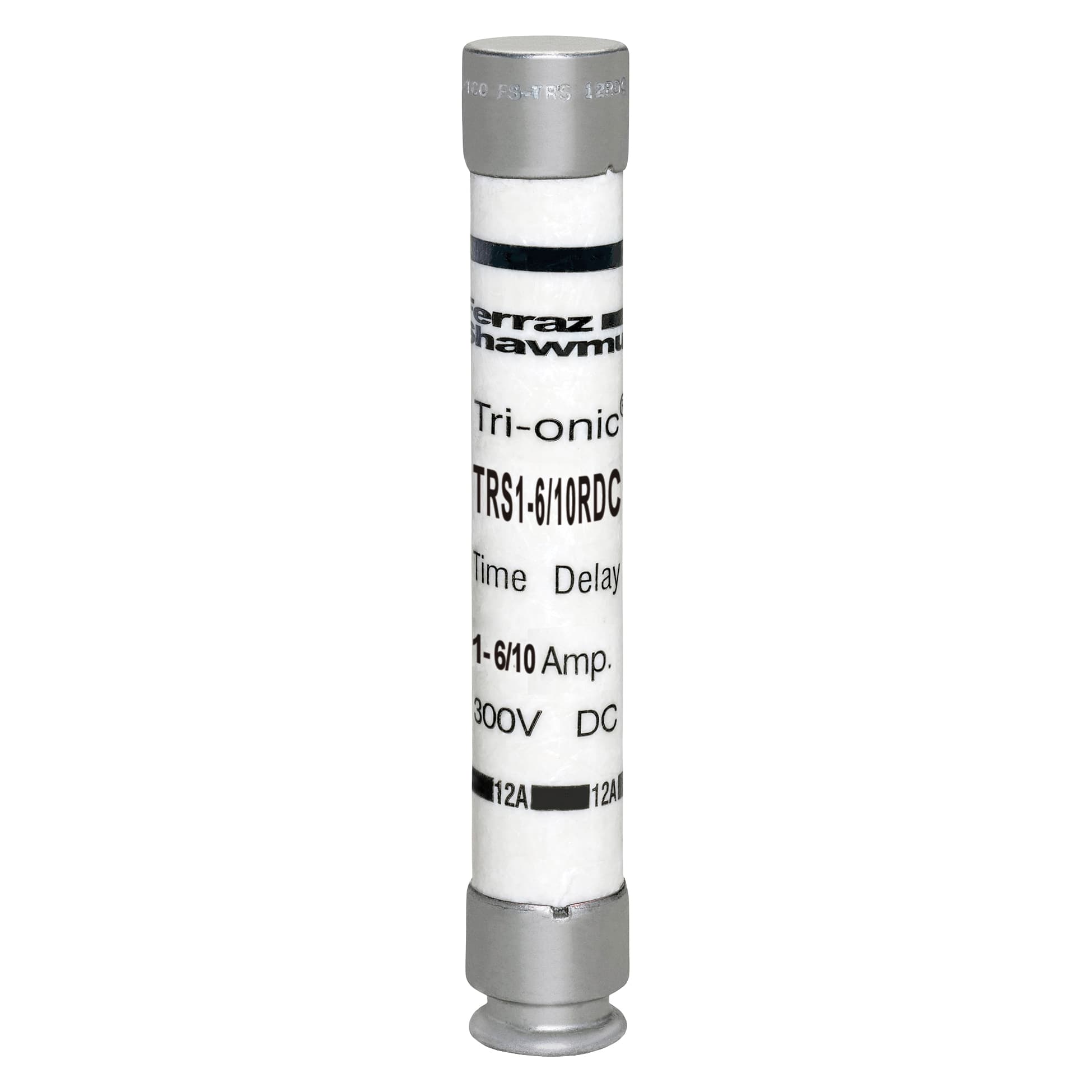

Mersen TRS1-6/10RDC TRS1-6/10RDC Mersen - Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 1.6A Ferrule Tri-Onic®
Mersen

Part#:TRS1-6/10RDC

Manufacturer:Mersen

Alt. Part#:782001229177

Product Lifecycle:Active

Get a quick Quote!

TRS1-6/10RDC Mersen - Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 1.6A Ferrule Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRS1-6/10RDC Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    1.6 A
  • Terminal Type
    Ferrule
  • Material
    GMG
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    62.1295 g
  • Voltage
    300 VDC
  • Approvals
    *MSHA approval no. 28-26-0
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Sell Pack Height
    1.75 in
  • Product Length
    5 in
  • Sell Pack Width
    4.12 in
  • Sell Pack Length
    5.12 in
  • Sell Pack Quantity
    10 Each
  • Product Diameter
    0.81 in
  • Body/Insulating Material
    GMG
  • Speed/Characteristic
    Time Delay
  • Fuse Class
    Class RK5
  • Rated voltage DC UL
    300 V
  • Connection/Terminal Material
    Tin-Plated Copper
  • Connection/Terminal Type
    Ferrule
  • Mounting
    Clip
  • Ampere Rating
    1.6 A
  • Product Weight
    0.2 lb

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TRS1-6/10RDC Description

TRS1-6/10RDC Mersen - Fuse TRS-RDC - Class RK5 - Time-Delay 300VDC 1.6A Ferrule Tri-Onic®



Related documents TRS1-6/10RDC Specs
