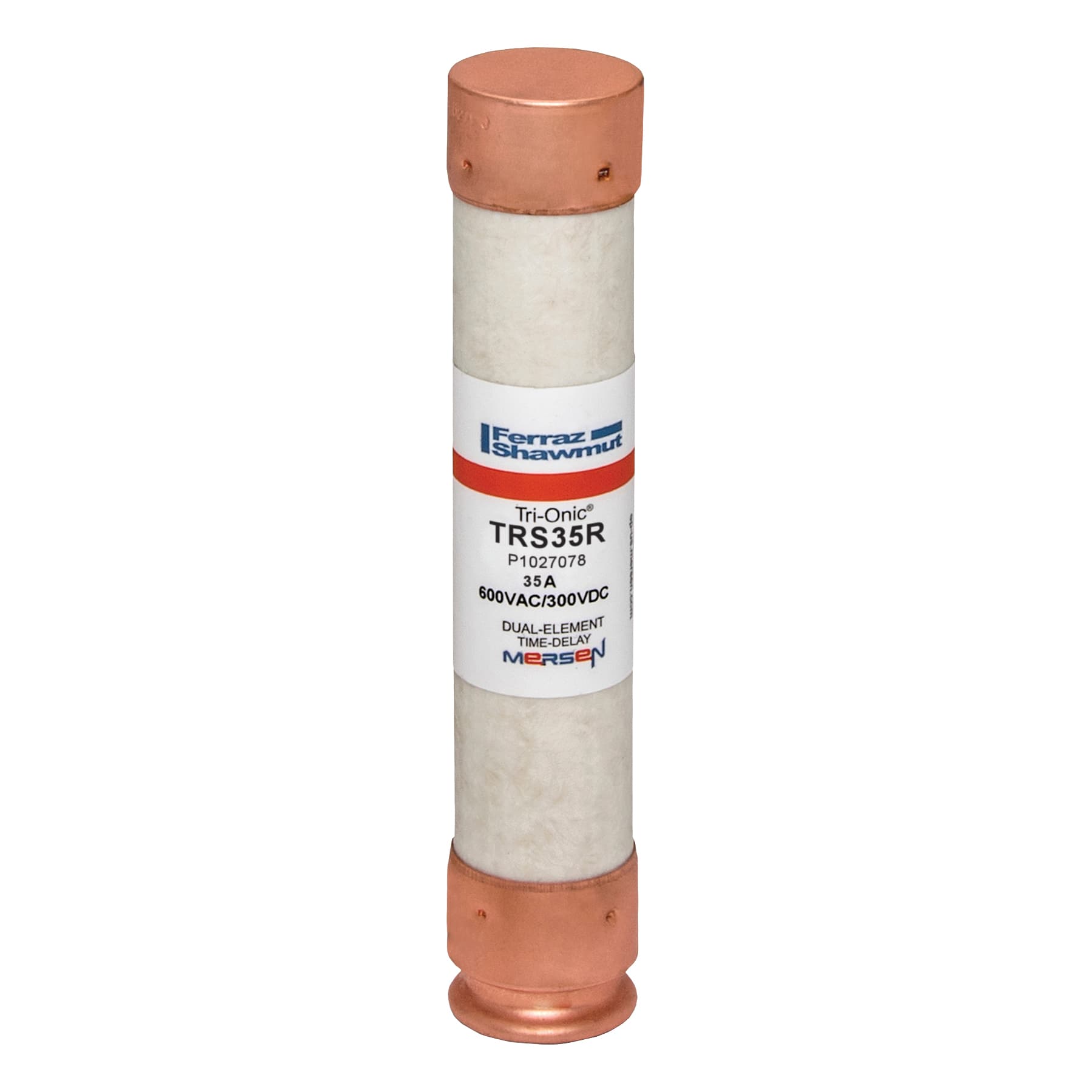

TRS35R Mersen Fuses

Mersen TRS35R TRS35R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 35A Ferrule Tri-Onic®
Mersen

Part#:TRS35R

Manufacturer:Mersen

Alt. Part#:782001749002

Product Lifecycle:Active

Get a quick Quote!

TRS35R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 35A Ferrule Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRS35R Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    35 A
  • Terminal Type
    Ferrule
  • Material
    PolyTube
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    144.6665 g
  • Voltage
    600 VAC / 300 VDC
  • Approvals
    *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Volts:
    600 VAC/300 VDC
  • Diameter:
    1.06 Inch
  • Amps:
    35 A
  • Type:
    Motor Circuit Protection
  • Shipping Width:
    1.00 In.
  • Shipping Length:
    5.00 In.
  • UPC:
    78200174900
  • Length:
    5.5 Inch
  • Shipping Height:
    1.00 In.
  • Interrupting Rating:
    200 Kiloamp (AC)
  • Terminal Type:
    Ferrule
  • Shipping Weight:
    0.10 lbs.
  • Approval:
    UL
  • Sell Pack Height
    5.62 in
  • Sell Pack Length
    5.5 in
  • Sell Pack Weight
    3.68 lb
  • Sell Pack Width
    2.19 in
  • Sell Pack Quantity
    10 Each
  • Product Length
    5.5 in
  • Product Diameter
    1.06 in
  • Product Weight
    0.35 lb
  • Body/Insulating Material
    PolyTube
  • Mounting
    Clip
  • Connection/Terminal Type
    Ferrule
  • Connection/Terminal Material
    Copper
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Speed/Characteristic
    Time Delay
  • Fuse Class
    Class RK5
  • Frequency
    50/60 Hz
  • Rated voltage DC UL
    300 V
  • Rated voltage AC UL
    600 V
  • Ampere Rating
    35 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TRS35R Description

TRS35R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 300VDC 35A Ferrule Tri-Onic®
