U70505 Mersen Fuse Holders
Part#:U70505
Alt. Part#:782001323578
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
U70505 Mersen - Fuse Block 750VAC 750VDC 50A Adder Box
Product Details
- Number of Poles Adder Pole
- Current Rating 50 A
- Weight 45.4 g
- Voltage 750 VAC
- Fuse Type/Class Semiconductor
- Product Width 0.97 in
- Short Circuit Current Rating (SCCR) 200 kA
- Torque Rating 35 lb-in
- Number of Poles Adder
- Rated voltage DC UL 750 V
- Sell Pack Height 3.12 in
- Max Fuse Rating 50 A
- Product Length 3 in
- Wiring range Al/Cu #2-14
- Fuse Installation Method Clip-in
- Sell Pack Quantity 10 Each
- Sell Pack Width 3.62 in
- Ampere Rating 50 A
- Rated voltage AC UL 750 V
- Sell Pack Length 7.3 in
- Frequency 50/60 Hz
- Product Weight 0.1 lb
- ROHS Compliant Yes
- Body/Insulating Material Thermoplastic
- Product Height 1.37 in
- Sell Pack Weight 1.05 lb
- Installation Mounting Screw Mount or DIN Rail
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

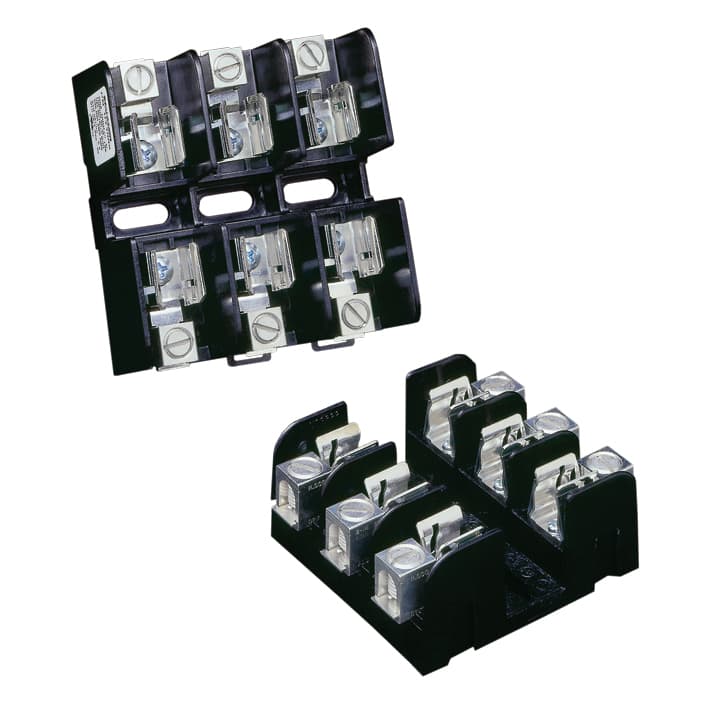

U70505 Mersen - Fuse Block 750VAC 750VDC 50A Adder Box | Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips. | Features: *Thermoplastic bases
*DIN-rail (U710) or Screw Mount
*Adder block design | Application: *All circuits up to 750 volts using semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.
