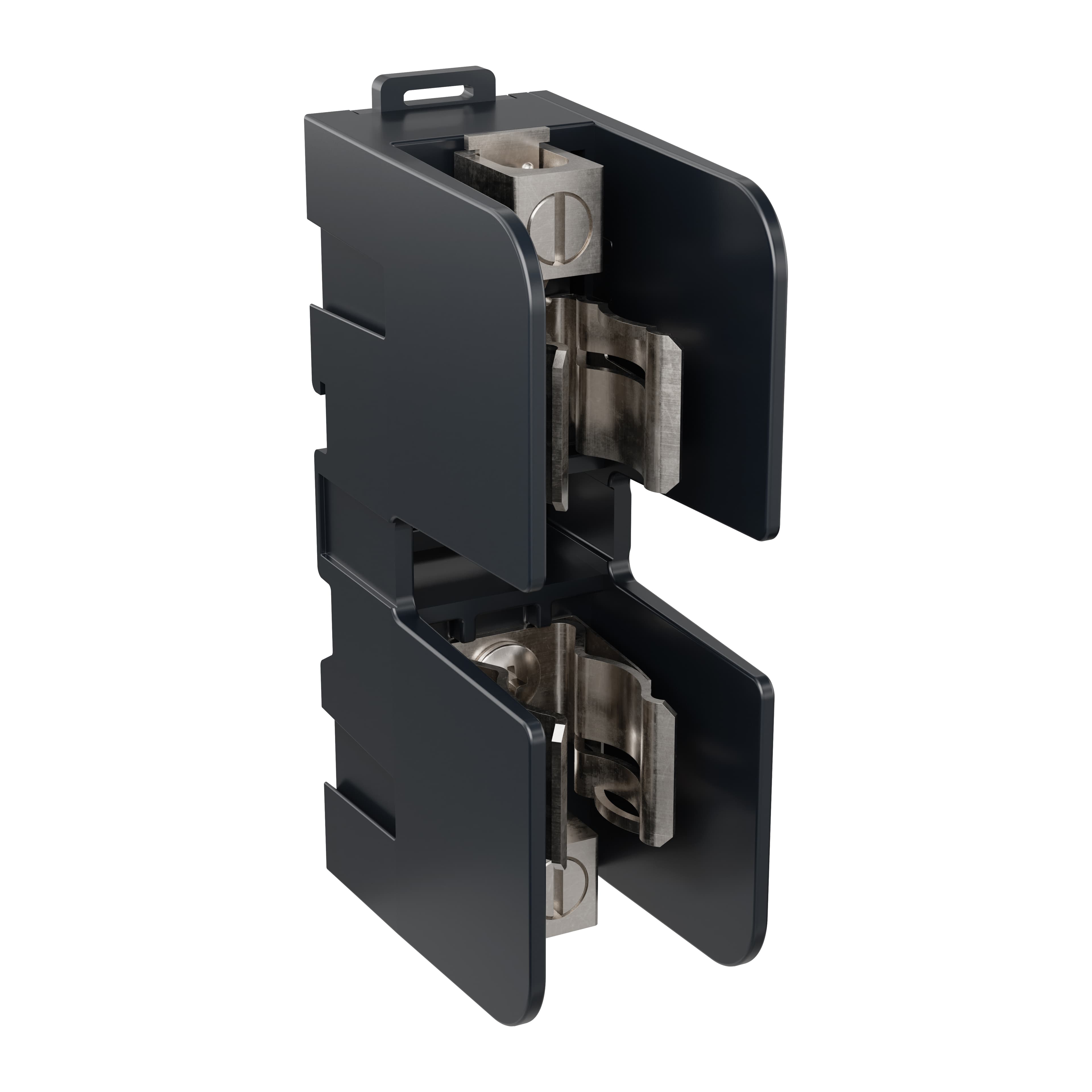

U71006 Mersen Fuse Holders
Part#:U71006
Alt. Part#:782001323622
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
U71006 Mersen - Fuse Block 750VAC 750VDC 100A 1-Pole Box
Product Details
- Number of Poles 1 Pole
- Current Rating 100 A
- Weight 122.58 g
- Voltage 750 VAC
- Ampere Rating 100 A
- Fuse Type/Class Semiconductor
- Product Length 3.9 in
- Frequency 50/60 Hz
- Rated voltage AC UL 750 V
- Product Weight 0.27 lb
- Body/Insulating Material Thermoplastic
- Rated voltage DC UL 750 V
- Max Fuse Rating 100 A
- Product Width 1.29 in
- Short Circuit Current Rating (SCCR) 200 kA
- Number of Poles 1-pole
- Torque Rating 35 lb-in
- Wiring range Al/Cu #2-14
- ROHS Compliant Yes
- Product Height 2.2 in
- Sell Pack Length 7 in
- Fuse Installation Method Clip-in
- Installation Mounting Screw Mount or DIN Rail
- Sell Pack Quantity 10 Each
- Sell Pack Width 6.5 in
- Sell Pack Weight 2.84 lb
- Sell Pack Height 3.5 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of U71006 on Advantage Electric Supply is $87.08. Order now.
About the product
U71006 Mersen - Fuse Block 750VAC 750VDC 100A 1-Pole Box | Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips. | Features: *Thermoplastic bases
*DIN-rail (U710) or Screw Mount
*Adder block design | Application: *All circuits up to 750 volts using semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.
