USCC3 Mersen Fuse Holders
Part#:USCC3
Alt. Part#:782001829902
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

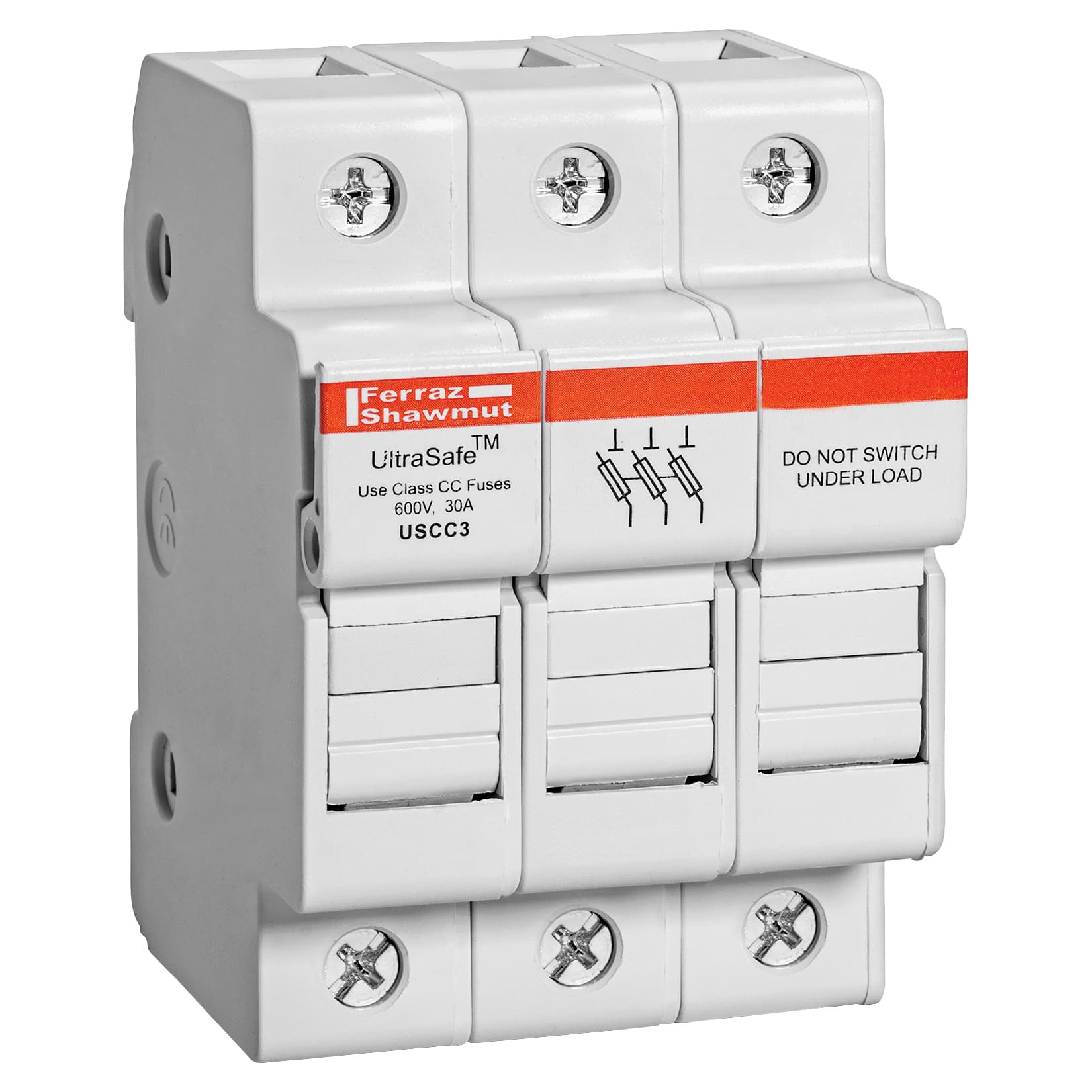

USCC3 Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP65
Product Details
- Number of Poles 3 Pole
- Current Rating 30 A
- Weight 195.22 g
- Voltage 600 VAC
- Number of Poles 3-pole
- Rated voltage AC UL 600 V
- Sell Pack Quantity 4 Each
- Fuse Class Class CC
- Short Circuit Current Rating (SCCR) 200 kA
- Product Weight 0.43 lb
- ROHS Compliant Yes
- Body/Insulating Material GFPC
- Sell Pack Length 8.5 in
- Fuse Type/Class Class CC
- Product Width 2.07 in
- Ampere Rating 30 A
- Installation Mounting DIN Rail
- Sell Pack Width 3.5 in
- Wiring range Cu #6-14
- Product Length 3.07 in
- Sell Pack Height 2.66 in
- Rated voltage DC UL 600 V
- Fuse Installation Method Clip-in
- Sell Pack Weight 1.8 lb
- Product Height 2.32 in
- Max Fuse Rating 30 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of USCC3 on Advantage Electric Supply is $172.51. Order now.
About the product
USCC3 Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class CC 30A 3-Pole Pressure Plate IP65 | Mersen USCC Series UltraSafe Modular Fuse holders introduce a new level of safety for Class CC 1-1/2" x 13/32" AC and DC-rated fuses up to 30 amperes. UltraSafe holders qualify as “Finger-safe” under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe holders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multi-pole units can also be field assembled by ordering pin-tie handles.
UltraSafe holders save up to 15% mounting space and any combination can be snapped onto 35mm DIN-rail for extra savings in panel building time. UltraSafe holders with Class CC fuses chosen for Type “2” No Damage protection give one of the safest protection packages in the industry. UltraSafe body material is tough and durable polyamide, with exceptional insulating properties. | Features: * IP20 Finger-Safe (touch safe)
* Optional visual blown fuse Indicator lights
* DIN-rail mounting
* Compact footprint
* Quick, tool-free, easy fuse change outs
* USCC use with: ATDR, ATMR, ATQR
* ATM, DCT, ATMR recommended for DC applications | Application: *All circuits up to 600 volts for motors, control circuits, transformers, etc…
*DC circuits up to 1000VDC including photovoltaic applications
*Non-load disconnect
