V075297 Mersen Fuses

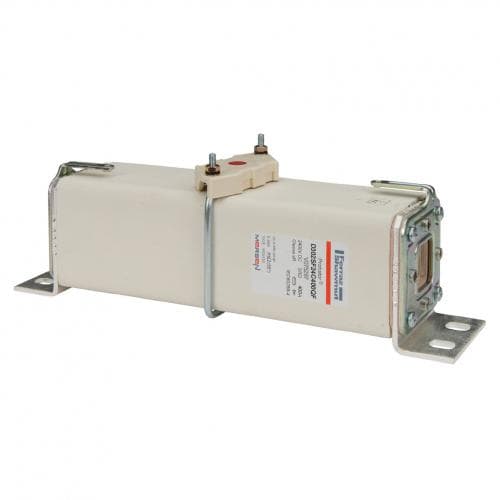

Mersen V075297 V075297 Mersen - Square Body High-Speed Fuse Protistor® Size 302 aR 2400VDC IEC 400A With Striker L Brackets
Mersen

Part#:V075297

Manufacturer:Mersen

Alt. Part#:3605340008289

Product Lifecycle:Active

Get a quick Quote!

V075297 Mersen - Square Body High-Speed Fuse Protistor® Size 302 aR 2400VDC IEC 400A With Striker L Brackets

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the V075297 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    400 A
  • Terminal Type
    L Brackets
  • Weight
    1831.436 g
  • Trip Class
    High Speed
  • Country Of Origin
    FR
  • Fuse Class
    Semiconductor
  • Product Height
    3.41 in
  • Sell Pack Weight
    4.034 lb
  • Sell Pack Height
    3.35 in
  • Sell Pack Length
    12.4 in
  • Product Weight
    4.034 lb
  • Sell Pack Width
    5 in
  • Sell Pack Quantity
    1 EACH
  • Product Length
    10.55 in
  • Connection/Terminal Type
    L Brackets
  • Fuse Size
    302
  • Indication System
    Yes
  • Indication System Type
    Striker
  • Connection/Terminal Material
    Silver-Plated Copper
  • Body/Insulating Material
    Ceramic
  • Design Details
    SRF
  • Product Width
    3.03 in
  • Catalogue No.
    D302SF24C400QF
  • Power Dissipation at Rated Current Value
    188 W
  • Rated voltage DC IEC
    2400 V
  • Speed/Characteristic
    aR
  • Mounting
    Bolted
  • Ampere Rating
    400 A
  • Clearing I2t At Rated Voltage
    195000 A²s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


V075297 Description

V075297 Mersen - Square Body High-Speed Fuse Protistor® Size 302 aR 2400VDC IEC 400A With Striker L Brackets

Product type: Semiconductor Protection Fuses

Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
