V076263 Mersen Fuses
Product Details
- Current Rating 315 A
- Terminal Type DIN Type Blades
- Weight 250.154 g
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Mounting Bolted
- Rated voltage AC IEC 1000 V
- Speed/Characteristic aR
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Length 4.13 in
- Clearing I2t At Rated Voltage 115000 A²s
- Power Dissipation at Rated Current Value 67 W
- Product Length 3.94 in
- Melting I2t 15430 A²s
- Product Weight 0.551 lb
- Ampere Rating 315 A
- Indication System Type Striker
- Product Height 1.52 in
- Fuse Size NH00
- Product Width 1.18 in
- Sell Pack Height 2.83 in
- AC Max I.R./Breaking Capacity: I1 50 kA
- Indication System Yes
- Sell Pack Weight 1.653 lb
- Catalogue No. DN00UC10C315L
- Body/Insulating Material Ceramic
- Sell Pack Quantity 3 EACH
- Connection/Terminal Type DIN Type Blades
- Sell Pack Width 3.74 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V076263 on Advantage Electric Supply is $1,916.15. Order now.
About the product

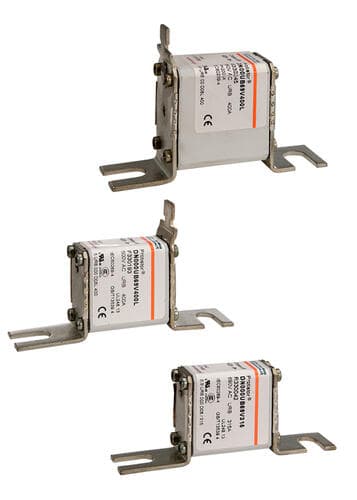

V076263 Mersen - Square Body High-Speed Fuse Protistor® Size NH 00 aR 1000VAC IEC 315A With Striker DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 1000V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Superior cycling capability
*Compact Size
