V085624 Mersen Fuses
Product Details
- Current Rating 400 A
- Terminal Type Cylindrical
- Weight 13.448 lb
- Voltage 7.2 kV AC
- Country Of Origin FR
- Fuse Class High Voltage IEC Fuses
- Clearing I2t At Rated Voltage 4100 kA²s
- Connection/Terminal Type Cylindrical
- AC Max I.R./Breaking Capacity: I1 50 kA
- Indication System Type Striker
- Catalogue No. 45ASD72V400P-3
- Mounting Clip
- Sell Pack Width 13.39 in
- Fuse Size d=88mm, L=442mm
- Product Weight 13.448 lb
- Connection/Terminal Material Silver-Plated Brass
- Min Interrupting Rating (MBC) 2700 A
- Product Length 20 in
- Sell Pack Length 21.85 in
- Rated voltage AC IEC 7.2 kV
- Indication System Yes
- Body/Insulating Material Melamine fiber glass
- Ampere Rating 400 A
- Sell Pack Quantity 3 EACH
- Sell Pack Height 4.72 in
- Power Dissipation at Intermediate Current Value 69W @ 0.7 In
- Product Diameter 3.46 in
- Sell Pack Weight 40.345 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V085624 on Advantage Electric Supply is $11,343.06. Order now.
About the product

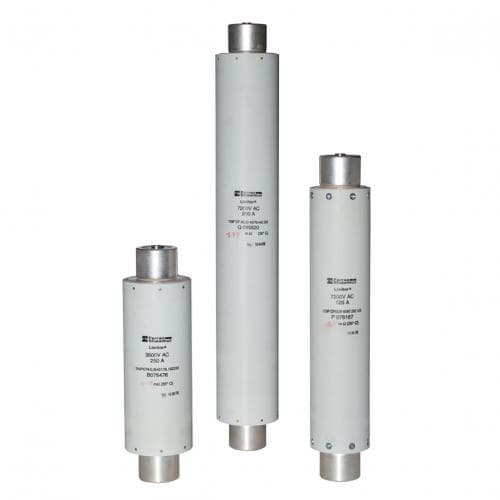

V085624 Mersen - High Voltage Back-up fuse for motor Limitor® 7.2kVAC IEC 400A d88mm, L442mm With Striker 50N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Mersen HV fuse link for motor protection is specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents due motor starting.
Mersen uses the best materials : fuse elements are in pure silver, caps are in silver-plated brass and body is in melamine fiber glass.
As defined in the IEC 60644 the coefficient K is 0.51.
High speed switching
*Voltage drive
*Low inductance module structure
*Energy efficency
*Back-up fuse-links
*High breaking capacity
*High current limitation
*Low power losses
*Striker 50N / 30mm
HV motor protection
*HV motor pump protection
*For indoor use
*Operating temperature -25°C to +40°C
