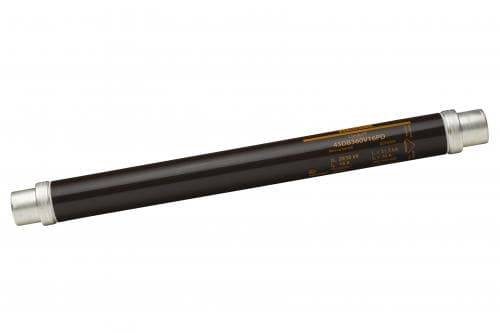

V209364 Mersen Fuses
Product Details
- Current Rating 16 A
- Terminal Type Cylindrical
- Weight 5.952 lb
- Voltage 36 kV AC
- Country Of Origin HU
- Fuse Class High Voltage IEC Fuses
- Sell Pack Height 2.76 in
- Sell Pack Length 24.41 in
- Sell Pack Width 2.76 in
- Sell Pack Quantity 1 EACH
- Product Weight 5.952 lb
- Sell Pack Weight 5.952 lb
- Connection/Terminal Type Cylindrical
- Product Length 23.74 in
- Product Diameter 2.2 in
- Body/Insulating Material Ceramic
- Connection/Terminal Material Silver-Plated Copper
- Indication System Yes
- Indication System Type Striker
- Catalogue No. 45DB360V16PD
- Rated voltage AC IEC 36 kV
- Ampere Rating 16 A
- Clearing I2t At Rated Voltage 2.34 kA²s
- Mounting Clip
- AC Max I.R./Breaking Capacity: I1 32 kA
- Min Interrupting Rating (MBC) 70 A
- Power Dissipation at Rated Current Value 67 W
- Fuse Size d=56mm, L=537mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V209364 on Advantage Electric Supply is $799.84. Order now.
About the product
V209364 Mersen - High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 36kVAC IEC 16A d56mm, L537mm With Striker 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-PD HV fuses are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers against effects of short-circuit currents.
The VDE 0670 T402 defines fuses between 6.3A and 160A, for other ratings, thanks to consult Limitor®-P HV fuses range.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
High breaking capacity
*High current limitation
*Low switching voltage
*Quick breaking
*medium striker 80N/30mm
*Energy efficency
*New cap design for a better compatibility with all types of clips
*and easier assembly
*Coordination with IEC 60787, IEC 62271-105, IEC/TR 62655
*Indoor and outdoor applications
HV Transformer protection
