V322363 Mersen Fuses
Product Details
- Current Rating 100 A
- Weight 433.57 g
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Rated voltage AC UL 700 V
- Fuse Size NH0
- Clearing I2t At Rated Voltage 4820 A²s
- Power Dissipation at Rated Current Value 19 W
- Product Weight 0.955 lb
- Product Height 2.52 in
- Sell Pack Width 4.92 in
- Sell Pack Height 2.76 in
- Rated voltage AC IEC 690 V
- ROHS Compliant Yes
- Mounting Clip
- AC Max I.R./Breaking Capacity: I1 160 kA
- Indication System Type Double Indicator
- Product Width 1.57 in
- Sell Pack Quantity 3 EACH
- Sell Pack Length 5.51 in
- Ampere Rating 100 A
- Catalogue No. NH1GS69V100PV
- Speed/Characteristic gS
- Melting I2t 965 A²s
- Indication System Yes
- Body/Insulating Material Ceramic
- Product Length 5.31 in
- Sell Pack Weight 2.866 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V322363 on Advantage Electric Supply is $1,029.52. Order now.
About the product

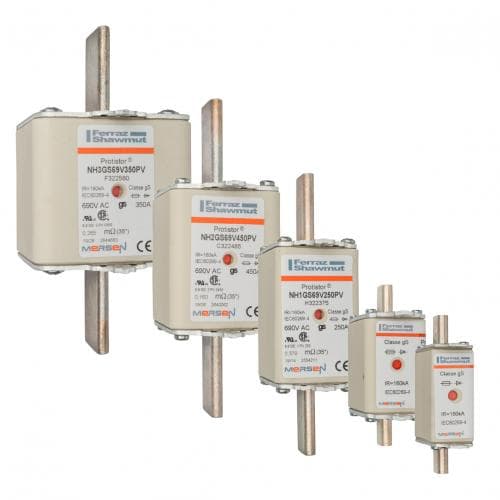

V322363 Mersen - Square Body High-Speed Fuse Protistor® NH Size 0 gS 690VAC IEC 700VAC UL 100A With Double indicator Plain Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These NH style fuse-links are defined as per DIN 43620/00 for a worldwide acceptance into NH modular system fuse-holders, fuse switch disconnectors for direct installation.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes
*gS Class according to IEC 60269-4
*Low I²t for improved semiconductor protection
*Fast acting
*Highly current limiting
*Excellent cycling capability
*Reduced power dissipation
*No derating in standard NH fusegear
*High widstanding against inrush current and overloads
