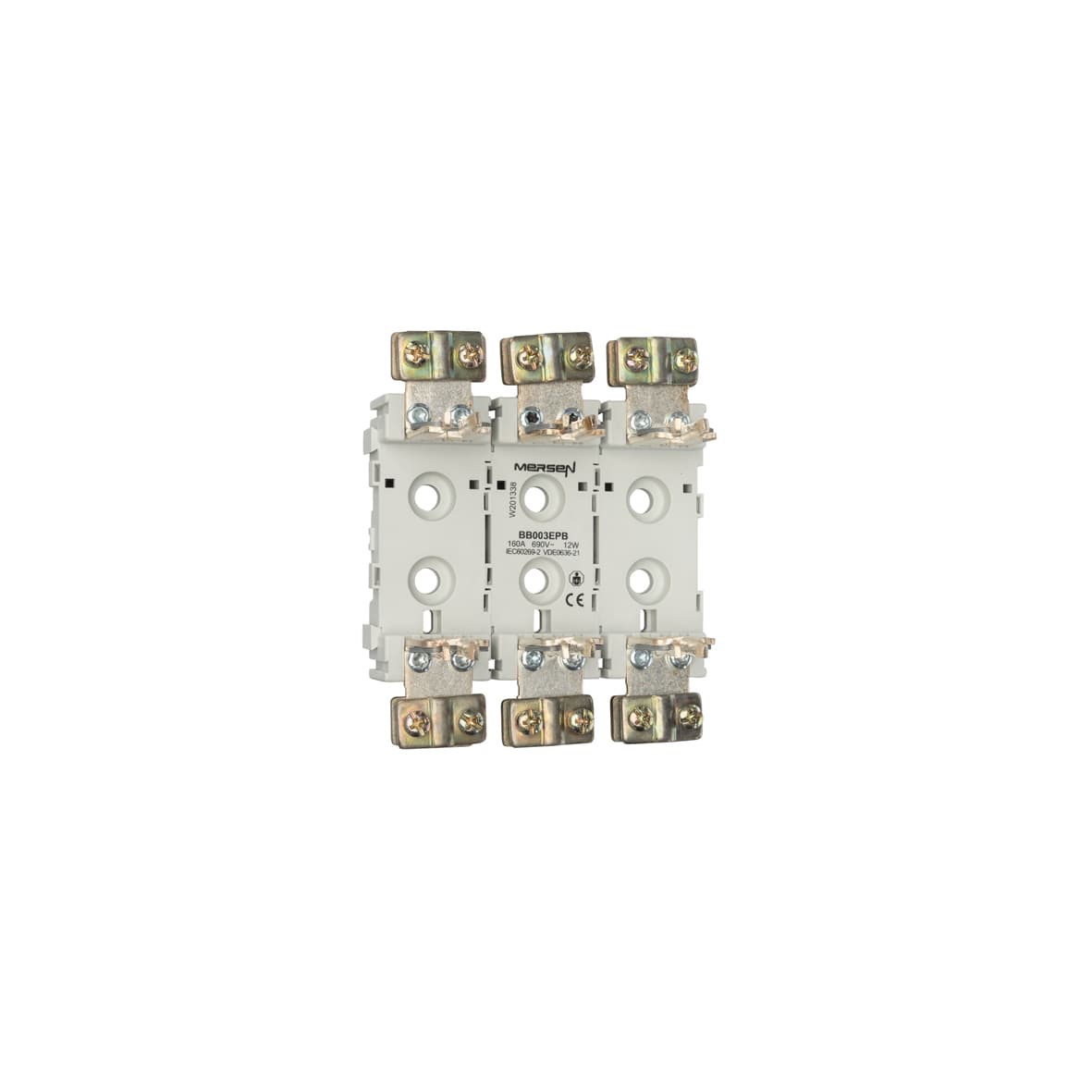

W201338 Mersen Fuse Holders
Part#:W201338
Alt. Part#:8430399002408
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
W201338 Mersen - NH plastic base Size NH00 1000VAC 1000VDC 160A 3-Pole Screw Connection Clamp Strap EP Type
Product Details
- Number of Poles 3 Pole
- Current Rating 160 A
- Weight 400.428 g
- Sell Pack Length 6.5 in
- Sell Pack Width 5.71 in
- Sell Pack Height 2.83 in
- Product Height 4.76 in
- Sell Pack Quantity 1 EACH
- Sell Pack Weight 0.882 lb
- Product Length 2.13 in
- Product Width 4.09 in
- Product Weight 0.882 lb
- Installation Mounting Screw
- Power Acceptance 12 W
- Torque Rating 34.52 lb-in
- Number of Poles 3-Pole
- Catalogue No. BB003EPB
- Design Details Type EP (square contacts)
- Rated voltage DC IEC 440 V
- Fuse Size NH00
- ROHS Compliant Yes
- Rated voltage AC IEC 690 V
- Ampere Rating 160 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W201338 on Advantage Electric Supply is $286.58. Order now.
About the product
W201338 Mersen - NH plastic base Size NH00 1000VAC 1000VDC 160A 3-Pole Screw Connection Clamp Strap EP Type | NH fuse-bases are available for delivery in single-pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is upplied with two phase-partition walls. NH fuse-links plugon covers which clip onto the contact springs can also be supplied for these bases.
Plastic fuse-bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases.
The stable silver-plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse-bases are designed for size 4 fuse-links with 8 mm contact blades.
A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse-links with striker, it operates when fuse melts or where there is no fuse-link.
Indirect touch protection fuse bases: no microswitch possible.
Rated impulse withstand voltage Uimp: 6kV / 8kV (sizes 00 / 0-4) | Features: *Polyamide insulating bases
*Silver-plated contacts
*High-pressure spring contacts
*Screw or rail mounting
*Connecting cable: 50mm
*Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3
*Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover
*Dual cable-connection system on 00 size: by screw or clamp | Application: *For fuse-links with rated voltages up to 1000VAC and 1000VDC
