W213643 Mersen Fuse Holders
Part#:W213643
Alt. Part#:8430399002651
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

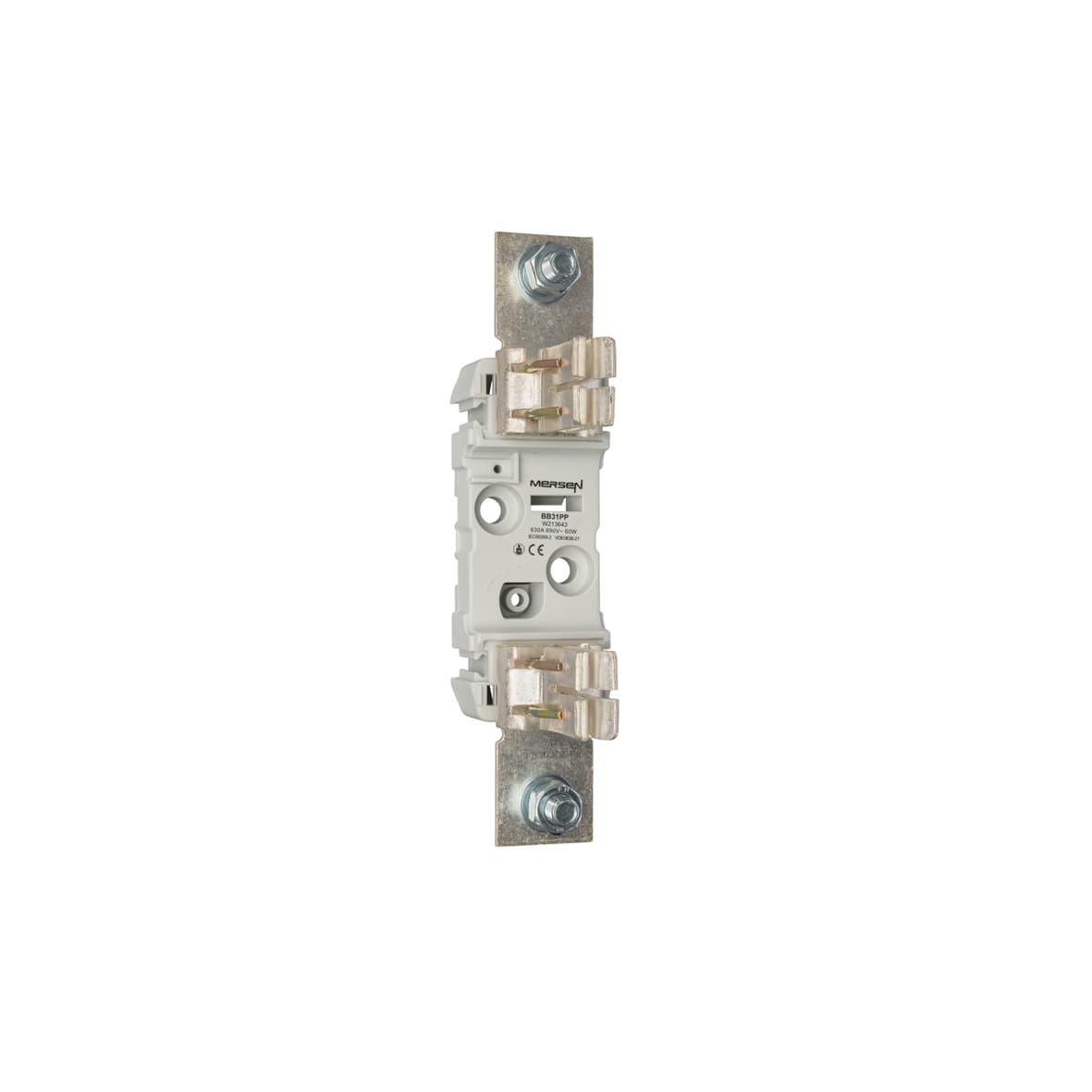

W213643 Mersen - NH plastic base Size NH3 1000VAC 1000VDC 630A 1-Pole Screw Connection Screw PP Type
Product Details
- Number of Poles 1 Pole
- Current Rating 630 A
- Weight 720.498 g
- Sell Pack Height 4.53 in
- Sell Pack Length 9.65 in
- Sell Pack Weight 4.762 lb
- Sell Pack Quantity 3 EACH
- Sell Pack Width 8.27 in
- Product Height 9.49 in
- Product Width 2.36 in
- Product Length 4.06 in
- Product Weight 1.587 lb
- Installation Mounting Screw
- Torque Rating 283.22 lb-in
- Number of Poles 1-Pole
- Power Acceptance 60 W
- Design Details Type PP (clip contacts)
- Catalogue No. BB31PP
- Ampere Rating 630 A
- Rated voltage DC IEC 440 V
- Rated voltage AC IEC 690 V
- ROHS Compliant Yes
- Fuse Size NH3
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W213643 on Advantage Electric Supply is $367.25. Order now.
About the product
W213643 Mersen - NH plastic base Size NH3 1000VAC 1000VDC 630A 1-Pole Screw Connection Screw PP Type | NH fuse-bases are available for delivery in single-pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is upplied with two phase-partition walls. NH fuse-links plugon covers which clip onto the contact springs can also be supplied for these bases.
Plastic fuse-bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases.
The stable silver-plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse-bases are designed for size 4 fuse-links with 8 mm contact blades.
A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse-links with striker, it operates when fuse melts or where there is no fuse-link.
Indirect touch protection fuse bases: no microswitch possible.
Rated impulse withstand voltage Uimp: 6kV / 8kV (sizes 00 / 0-4) | Features: *Polyamide insulating bases
*Silver-plated contacts
*High-pressure spring contacts
*Screw or rail mounting
*Connecting cable: 50mm
*Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3
*Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover
*Dual cable-connection system on 00 size: by screw or clamp | Application: *For fuse-links with rated voltages up to 1000VAC and 1000VDC
