W221256 Mersen Fuses
Product Details
- Current Rating 35 A
- Weight 49.94 g
- Trip Class High Speed
- Country Of Origin FR,IN
- Fuse Class Semiconductor
- Catalogue No. BS17UZ69V35P
- Fuse Size 17x49
- Melting I2t 53 A²s
- Indication System Yes
- Product Weight 0.11 lb
- Product Length 3.04 in
- Sell Pack Weight 1.102 lb
- Sell Pack Height 1.18 in
- Rated voltage AC IEC 690 V
- Speed/Characteristic aR
- Ampere Rating 35 A
- Mounting Bolted
- AC Max I.R./Breaking Capacity: I1 200 kA
- Indication System Type Striker
- Product Width 1.06 in
- Product Height 0.94 in
- Sell Pack Width 4.33 in
- Clearing I2t At Rated Voltage 330 A²s
- Power Dissipation at Rated Current Value 11 W
- Body/Insulating Material Ceramic
- Product Diameter 0.73 in
- Sell Pack Quantity 10 EACH
- Sell Pack Length 9.84 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

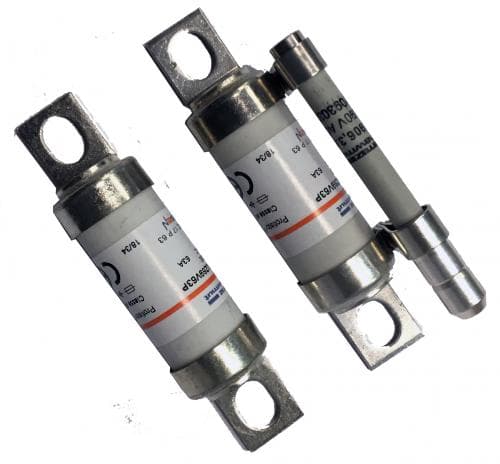

W221256 Mersen - British Standard fuse-link Protistor® 17x49 aR 690VAC IEC 35A With Striker
Product type: Semiconductor Protection Fuses
The 690V Protistor® BS88-4 fuse-links provide maximum flexibility in equipment design and ultimate protection for protection of power semiconductors.These fuse-links are defined as per IEC 60269-1 and -4 , VDE 636-23 and BS88-4 for a worldwide acceptance.The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Extremely fast acting
*Current limiting
*Very high breaking capacity
*Low watts loss
