X300722 Mersen Fuses
Product Details
- Current Rating 700 A
- Terminal Type End Contact with Threaded Holes
- Weight 1699.322 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Catalogue No. PC272UD13C700TF
- AC Max I.R./Breaking Capacity: I1 100 kA
- Product Weight 3.743 lb
- Power Dissipation at Rated Current Value 162 W
- Sell Pack Weight 3.743 lb
- Melting I2t 84 kA²s
- Indication System Type Striker
- Product Height 2.58 in
- Ampere Rating 700 A
- Clearing I2t At Rated Voltage 675 kA²s
- Product Length 3.58 in
- Sell Pack Length 8.07 in
- Mounting Bolted
- Body/Insulating Material Ceramic
- Sell Pack Quantity 1 EACH
- Fuse Size 2x72
- Indication System Yes
- Product Width 5.45 in
- Rated voltage AC IEC 1250 V
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Height 3.74 in
- Speed/Characteristic aR
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Width 3.54 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

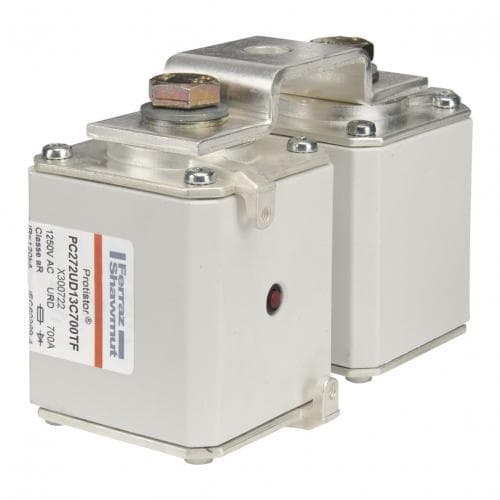

X300722 Mersen - Square Body High-Speed Fuse Protistor® Size 2x72 aR 1250VAC IEC 700A With Striker Flush ends metric threads With Omega connection
Product type: Semiconductor Protection Fuses
The 1250V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
