Z1006203 Mersen Fuse Holders
Part#:Z1006203
Alt. Part#:0782001311254
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

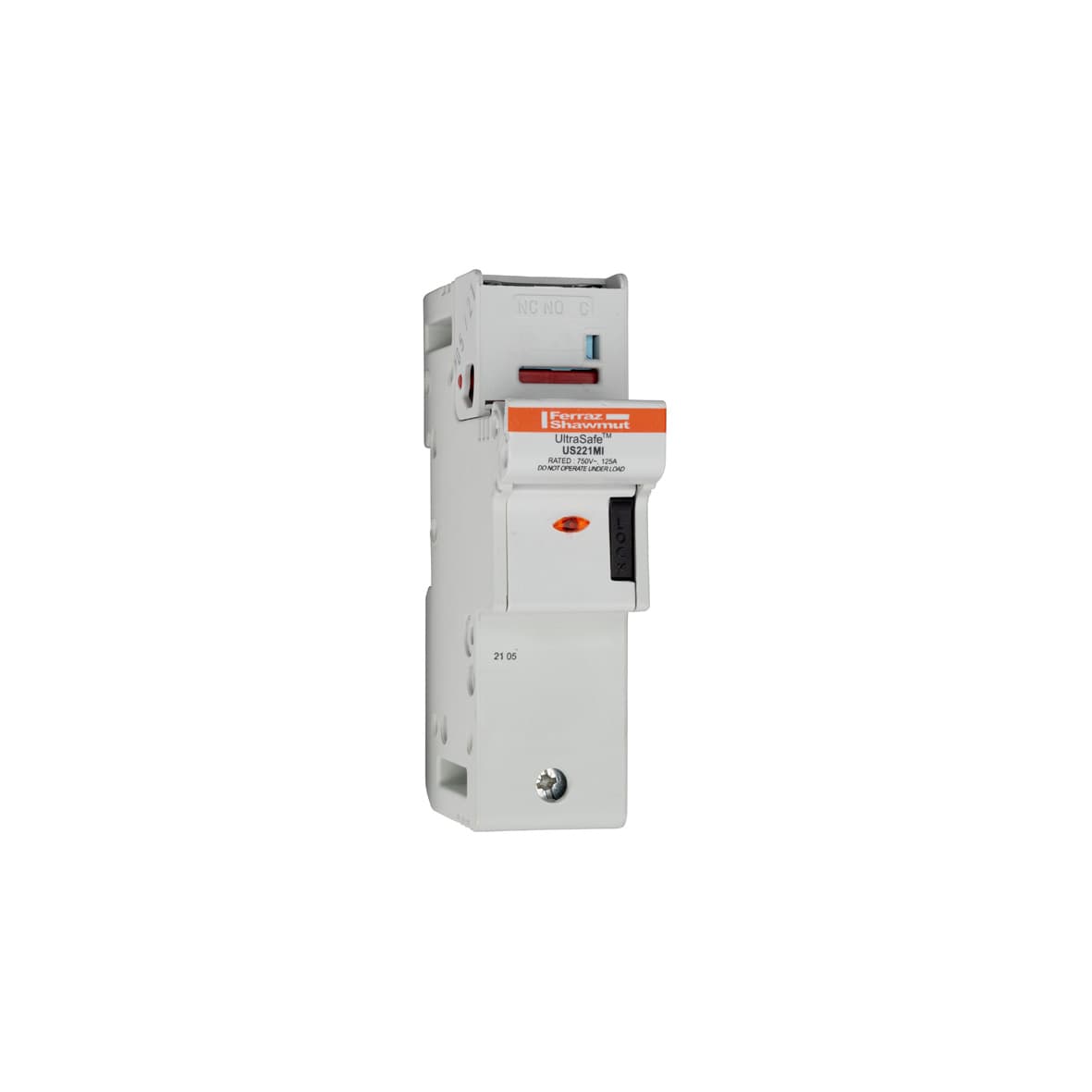

Z1006203 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 1-Pole Visual Indicator Microswitch Pressure Plate IP20
Product Details
- Number of Poles 1 Pole
- Current Rating 125 A
- Weight 217.012 g
- Voltage 800 VAC
- Sell Pack Height 3.35 in
- Sell Pack Weight 2.865 lb
- Sell Pack Length 9.06 in
- Sell Pack Width 5.12 in
- Sell Pack Quantity 6 EACH
- Product Height 5.02 in
- Product Length 3.01 in
- Product Width 1.38 in
- Product Weight 0.478 lb
- Comments Wiring tool : PZ2 or flat 6.5x1.2mm screw drivers recommended (max. diameter 7mm)
- Torque Rating 35.4 lb-in
- Rated Insulation Voltage 750 V
- Conventional Free Air thermal Current With Fuse-Links Ith 125 A
- Installation Mounting DIN rail acc. EN 60715
- Max Fuse Rating 125 A
- Rated Impulse Withstand Voltage 8
- Body/Insulating Material Polyamide
- Fuse Size 22x58
- Indication System Type Visual Indicator Microswitch
- Design Details single pole
- Connection/Terminal Material Tin-Plated Copper
- Fuse Installation Method Clip-in
- Connection/Terminal Type Clip
- Wiring range 1/0 - #14
- Number of Poles 1-Pole
- Indication System Yes
- Rated voltage AC UL 800 V
- ROHS Compliant Yes
- Frequency 50...60 Hz
- Rated voltage DC UL 1000 V
- Rated voltage AC IEC 690 V
- Short Circuit Current Rating (SCCR) 100 kA
- Rated voltage DC IEC 690 V
- Ampere Rating 125
- Catalogue No. US221MI
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Z1006203 on Advantage Electric Supply is $204.72. Order now.
About the product
Z1006203 Mersen - Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 22x58 1-Pole Visual Indicator Microswitch Pressure Plate IP20 | The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders.
Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version.
Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication.
UltraSafe™ range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator & microswitch
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C | Application: *All circuits up to 750VAC for protection of motors,
*transformers, low voltage distribution, control circuits
*Non-load operation
