Z219189 Mersen Fuse Holders
Part#:Z219189
Alt. Part#:4086500054046
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

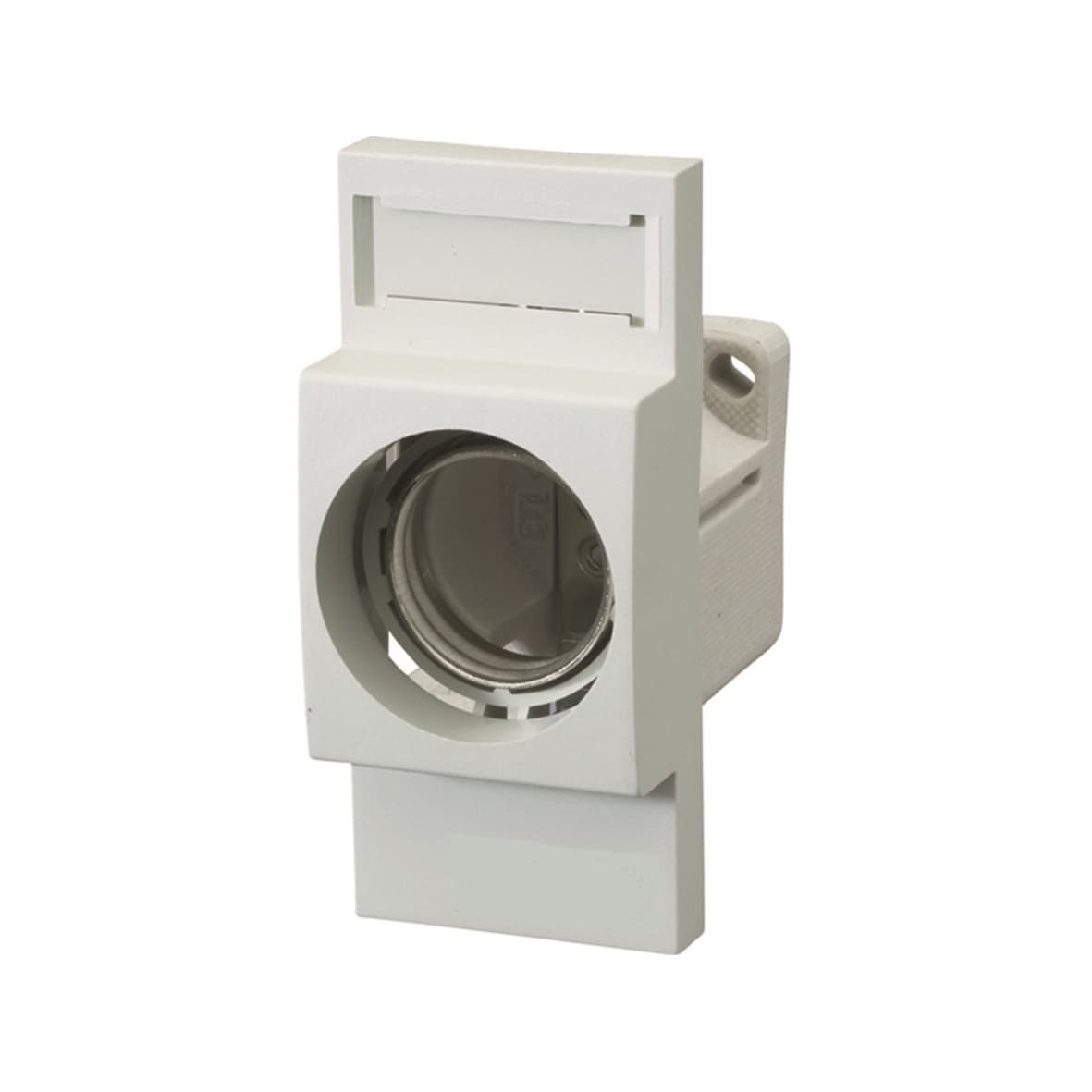

Z219189 Mersen - DIN Fuse base Size DII 500VAC 500VDC 25A 1-Pole with touch protection Screw mounting
Product Details
- Number of Poles 1 Pole
- Current Rating 25 A
- Weight 122.126 g
- Number of Poles 1-Pole
- Fuse Size DII
- Sell Pack Width 2.52 in
- ROHS Compliant Yes
- Body/Insulating Material Ceramic
- Sell Pack Length 8.62 in
- Comments Ceramic Fuse base with Plastic touch protection cover
- Catalogue No. 00081.110000
- Product Weight 0.269 lb
- Product Length 2.87 in
- Sell Pack Quantity 10 EACH
- Rated voltage AC IEC 500 V
- Ampere Rating 25 A
- Sell Pack Weight 2.69 lb
- Sell Pack Height 8.62 in
- Installation Mounting Screw
- Product Height 2.24 in
- Rated voltage DC IEC 500 V
- Product Width 1.81 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Z219189 on Advantage Electric Supply is $44.29. Order now.
About the product
Z219189 Mersen - DIN Fuse base Size DII 500VAC 500VDC 25A 1-Pole with touch protection Screw mounting | The D fuse-system is the first generation of the screw fuse-system in the german DIN standard. It is still used in many installations.
Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links.
The D fuse-range comprises the sizes NDZ, DII, DIII, DIV, DV.
The range of applications for D fuse-links "gG" is the protection of cables and power lines. They limit and cut off unacceptable overcurrents and short circuit currents up to their nominal breaking capacity. D fuse-links "gG" also protect equipments and installations against dynamic effects of high short circuit currents. | Features: *Insulated body suitable for high mechanical and thermal impacts
*Top and bottom contacts made of nickel plated copper alloy
*Safe cut off short circuits and over currents due to special design of fuse element
*Clear indication of operation condition due to coloured indicator on top contact
*Low power dissipation
*Optimized size
*Resistant to aging
*Free of lead, cadmium, mercury, chrome 6 (rohs conformity) | Application: *House incoming units
*Meter distribution units
*Distribution cabinets
*Installation cabinets
*Fuse boxes
