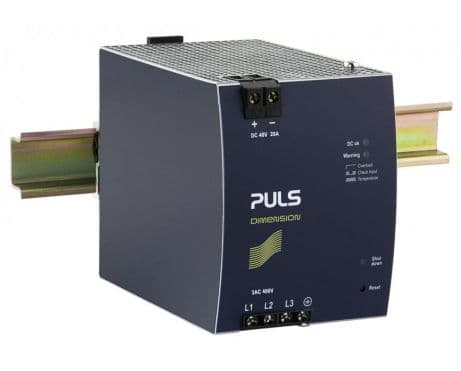

XT40.241 Puls AC/DC Power Supplies

XT40.241 on Advantage Electric Supply
Puls

Part#:XT40.241

Manufacturer:Puls

Category:AC/DC Power Supplies

Product Lifecycle:Active

Get a quick Quote!

PULS XT40.241 is a power supply unit part of the X-series, designed to function as an AC/DC PSU/converter with a semi-regulated 25% power reserve and a DC-OK relay contact output. It operates on a supply voltage of 3x360-440Vac (380Vac / 400Vac / 415Vac nominal; 47-63Hz), with a turn-ON voltage of 3 x 325Vac and a shutdown voltage of 3 x 295Vac. The unit's dimensions are W96mm x H124mm x D159mm, and it is encased in an aluminium housing with screw-clamp connections for installation. It has a rated current of 40A at 24Vdc and is designed for DIN rail mounting in a 3-phase (3AC) network. The ambient air temperature for operation ranges from -25 to +70°C. The XT40.241 has a net width of 96 mm and a peak current consumption of 4A max. inrush at 3x400Vac input. Its rated power is 24W/+60°C...+70°C (derating) 960W at 24Vdc and 1200W for a typical 15s. Protection functions include output overvoltage protection (29.9Vdc max.), active input inrush current limiter, and overload/short-circuit current protection. It supports 1+1 redundancy for higher system availability and is resistant to back-feeding loads up to 28.9V. The efficiency is rated at 0.955 with a 3x400Vac input, and it features a 400ms start-up delay, 40ms rise time with nominal input at constant full current load without load capacitance, and 70ms with 40mF load capacitance. The output voltage is fixed at 24Vdc with a 480mV turn-ON overshoot, and it has a 2ms buffer time at 3x400Vdc input. Power dissipation/losses are 45.2 W at full output load with 3x400Vdc input. Electrical durability is rated at 51000 hours at 40°C and 142000 hours at 25°C, with a 40A output and 3AC 400Vdc input. The output stage capacitance is 20000 µF, and the ripple is 1500mVpp (20Hz...2KHz; 50Ω).

About the manufacturer: Puls is one of the manufacturers that offers AC/DC Power Supplies that you can order at Advantage Electric Supply site. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the XT40.241 Puls price in the box on the right side or send a quick quote.

Product Details

  • UL File No.
    E198865
  • Phase
    3 Phase
  • Height
    124 mm
  • Width
    96 mm
  • Depth
    159 mm
  • Current Output
    40 A
  • Current Input
    1.65 A
  • Power
    960 W
  • Voltage Output
    24 VDC
  • Voltage Input
    400 VAC
  • Efficiency
    95.5 %

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



Related documents XT40.241 Specs

Manufacturer warranty

$790.00

Request a quote, and we will send availability within minutes.

Select Qty:

$790.00

$790.00 each

Average response time: 11 minutes
