106FXE2-SC-40-MDR Red Lion Industrial Automation Components

106FXE2-SC-40-MDR on Advantage Electric Supply
Red Lion

Part#:106FXE2-SC-40-MDR

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 106FXE2-SC-40-MDR is an industrial Ethernet switch designed for automation applications requiring reliable long-distance communication. It operates on a supply voltage of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fibers, capable of transmitting data over a 40km distance with a maximum throughput of 1.2Gbit/s. The switch is housed in a metallic case suitable for tall enclosure installations and is designed for mounting on a metal DIN rail (MDR). It operates within an ambient air temperature range for storage of -40 to +70 degrees Celsius. The switch's rated voltage is categorized under IP30 for protection, and it utilizes Ethernet technology for its rated impulse voltage (Uimp). This 6-port switch is part of the N-Tron 100 series, as indicated by its UNSPSC code.

Product Details

  • Primary brand
    Red Lion
  • Functions
    Industrial Ethernet switch
  • Secondary brand
    N-Tron
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Speed
    Maximum throughput 1.2Gbit/s
  • Degree of protection
    IP30
  • Benefits
    Compact Size / Small Footprint Extended environmental specifications High Reliability/Availability Extended environmental specifications Hardened metal DIN rail enclosure High Performance High MTBF >2 Million Hours (measured) Plug & Play Operation Four Au
  • Product series / family name
    Ethernet switches
  • Material
    Metallic case
  • Ambient air temperature for operation
    -40...+70 °C
  • Main function
    Ethernet Switch
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic SC connectors (single-mode; 100BaseFX; 40km rated optical fiber)
  • Design
    tall encl. (MDR - Metal DIN Rail)
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-3-2 cUL UL Class 1 Division 2 Hazardous locations
  • Sub-range name
    N-Tron 100 series
  • Connection capacity
    6-ports
  • Communication protocol
    Ethernet
  • Contents
    Metal DIN rail clip
  • Mounting mode
    DIN rail
  • Equivalent to
    106FXE2SC40MDR
  • Order code / Manufacturer SKU
    106FXE2-SC-40-MDR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

106FXE2-SC-40-MDR Related Documents

Red Lion - N-Tron 105M12 108M12 Unmanaged switches - Product Manual.pdfRed Lion - N-Tron 100 Series Unmanaged switches - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

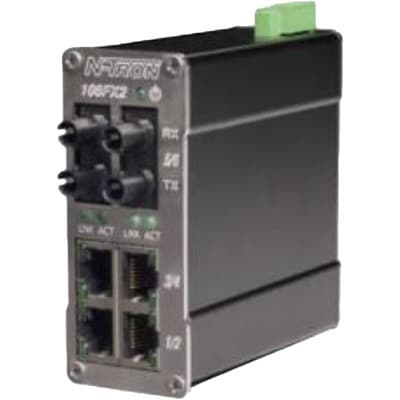

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.
