306FXE2-ST-40 Red Lion Industrial Automation Components

306FXE2-ST-40 on Advantage Electric Supply
Red Lion

Part#:306FXE2-ST-40

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 306FXE2-ST-40 is an industrial Ethernet switch designed for robust networking applications. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in critical systems. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode fiber with a 40km rated optical length, catering to extensive network setups. The switch is housed in a metallic case, ensuring durability, and is designed for DIN rail mounting, facilitating easy integration into existing setups. With an ambient air temperature range for storage from -40 to +70 degrees Celsius and an IP20 rating, it is suited for challenging industrial environments. The 306FXE2-ST-40 supports Ethernet speeds and includes technology that allows for efficient network management and expansion.

Product Details

  • Primary brand
    Red Lion
  • Connection type
    4 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 40km rated optical fiber)
  • Compliant with standard(s)
    CE IEEE 802.3 EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    306FXE2-ST-40
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Material
    Metallic case
  • Secondary brand
    N-Tron
  • Sub-range name
    N-Tron 300 series
  • Degree of protection
    IP20
  • Ambient air temperature for operation
    -40...+70 °C
  • Product series / family name
    Ethernet switches
  • Connection capacity
    6-ports
  • Mounting mode
    DIN rail
  • Equivalent to
    306FXE2ST40
  • Benefits
    Compact Size / Small Footprint High Reliability/Availability Extended environmental specifications Ruggedized DIN rail enclosure High Performance High MTBF >2M Hours (measured) Plug-and-Play operation 6 Auto Sensing 10/100BaseTX RJ-45 Ports Auto Sensing D

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

306FXE2-ST-40 Related Documents

Red Lion - N-Tron 300 Series Unmanaged switches - Installation Guide.pdfRed Lion - Industrial Networking Product Guide.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

306FXE2-ST-40 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 306FXE2-ST-40 with other Industrial Automation Components products

Primary brand

Connection type

Compliant with standard(s...

Main function

Functions

Communication protocol

Order code / Manufacturer...

Supply voltage (DC)

Material

Secondary brand

Selected product

306FXE2-ST-40
Backordered
306FXE2-ST-40
Red Lion

Red Lion 306FXE2-ST-40 is an industrial Ethernet switch designed for robust networking applications....

Primary brandRed Lion

Connection type4 x RJ45 ports (10/100BaseTX...

Compliant with standard(s)CE IEEE 802.3 EN 55011 EN 61...

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Communication protocolEthernet

Order code / Manufacturer SKU306FXE2-ST-40

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

MaterialMetallic case

Secondary brandN-Tron

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Primary brandRed Lion

Connection type4 x RJ45 ports (10/100BaseTX...

Compliant with standard(s)-

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Communication protocolEthernet

Order code / Manufacturer SKU-

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Material-

Secondary brandN-Tron

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Primary brandRed Lion

Connection type8 x RJ45 ports (10/100BaseTX...

Compliant with standard(s)-

Main functionEthernet Switch

FunctionsIndustrial process control m...

Communication protocolEthernet

Order code / Manufacturer SKU-

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Material-

Secondary brandN-Tron

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

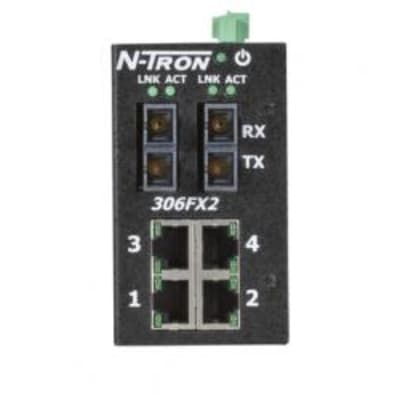

306FX2-SC on Advantage Electric Supply
