308FXE2-ST-80 Red Lion Industrial Automation Components

308FXE2-ST-80 on Advantage Electric Supply
Red Lion

Part#:308FXE2-ST-80

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 308FXE2-ST-80 is an industrial Ethernet switch designed for robust networking applications. It operates on a supply voltage of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 6 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for single-mode fiber with a length rating of 80km, suitable for extended range communications. The switch is housed in a metallic case, ensuring durability, and is designed for DIN rail mounting, facilitating easy integration into existing setups. It operates within an ambient air temperature range for storage of -40 to +70 degrees Celsius. The 308FXE2-ST-80 is classified under the N-Tron 300 series, with an IP20 rating, indicating protection against solid objects larger than 12mm but not against water. It is specified as an 8-port Ethernet switch, utilizing Ethernet technology for networking purposes.

Product Details

  • Secondary brand
    N-Tron
  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Connection type
    6 x RJ45 ports (10/100BaseTX) 2 x Fiber optic ST connectors (single-mode; 100BaseFX; 80km rated optical fiber)
  • Ambient air temperature for operation
    -40...+70 °C
  • Equivalent to
    308FXE2ST80
  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 300 series
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Order code / Manufacturer SKU
    308FXE2-ST-80
  • Mounting mode
    DIN rail
  • Compliant with standard(s)
    CE IEEE 802.3 RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Connection capacity
    8-ports
  • Degree of protection
    IP20
  • Benefits
    Supports Full/Half Duplex operation LED Link/Activity status indication Auto Senses Speed and Flow Control MDIX Auto Cable Sensing (RJ-45) Rugged industrial DIN rail enclosure Bi-Color Status LEDs For Link / Speed / Activity / Duplex Port Control
  • Material
    Metallic case

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

308FXE2-ST-80 Related Documents

Red Lion - Industrial Networking Product Guide.pdfRed Lion - N-Tron 300 Series Unmanaged switches - Installation Guide.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

308FXE2-ST-80 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 308FXE2-ST-80 with other Industrial Automation Components products

Secondary brand

Main function

Functions

Product series / family n...

Communication protocol

Connection type

Ambient air temperature f...

Equivalent to

Primary brand

Sub-range name

Selected product

308FXE2-ST-80
Backordered
308FXE2-ST-80
Red Lion

Red Lion 308FXE2-ST-80 is an industrial Ethernet switch designed for robust networking applications....

Secondary brandN-Tron

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Product series / family nameEthernet switches

Communication protocolEthernet

Connection type6 x RJ45 ports (10/100BaseTX...

Ambient air temperature for operation-40...+70 °C

Equivalent to308FXE2ST80

Primary brandRed Lion

Sub-range nameN-Tron 300 series

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Secondary brandN-Tron

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Product series / family nameEthernet switches

Communication protocolEthernet

Connection type4 x RJ45 ports (10/100BaseTX...

Ambient air temperature for operation-

Equivalent to-

Primary brandRed Lion

Sub-range nameN-Tron 100 series

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Secondary brandN-Tron

Main functionEthernet Switch

FunctionsIndustrial process control m...

Product series / family nameEthernet switches

Communication protocolEthernet

Connection type8 x RJ45 ports (10/100BaseTX...

Ambient air temperature for operation-

Equivalent to-

Primary brandRed Lion

Sub-range nameN-Tron 500-A series

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

308FX2-N-SC on Advantage Electric Supply

308FX2-N-SC

Verified stock: 0

Red Lion 308FX2-N-SC is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities and N-View Remote Monitoring Technology. It operates on a supply voltage of 10-30Vdc, including redundant power inputs, and features 6 RJ45 ports supporting 10/100BaseTX, along with 2 fiber optic SC connectors for multi-mode fiber with a 2km rated optical fiber length. The device is designed for DIN rail mounting in a metallic case and operates within an ambient air temperature range for storage of -40 to +70 degrees Celsius. It supports Ethernet speeds and is part of the N-Tron 300-N series, classified under the UNSPSC code specific to its category. The switch is equipped with 8 ports and is designed to withstand a rated impulse voltage (Uimp) specific to Ethernet applications.

Red Lion

308FX2-SC on Advantage Electric Supply

308FX2-SC

Verified stock: 0

Red Lion 308FX2-SC is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This switch features 6 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The ambient air temperature for storage is specified from -40 to +70 degrees Celsius. With an IP20 rated voltage for protection and adherence to Ethernet speed standards, this component is housed in a metallic case suitable for DIN rail mounting. The 308FX2-SC, part of the N-Tron 300 series, is an 8-port Ethernet switch, indicating its capacity for connecting multiple devices within an industrial setting.

Red Lion

308FXE2-SC-15 on Advantage Electric Supply

308FXE2-SC-15

Verified stock: 0

Red Lion 308FXE2-SC-15 is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This switch features 6 RJ45 ports supporting 10/100BaseTX and 2 fiber optic SC connectors for single-mode fibers, capable of transmitting data over a distance of up to 15km. It is designed to be mounted on a DIN rail and is housed in a metallic case, ensuring durability. The ambient air temperature range for storage is specified from -40 to +70 degrees Celsius. The switch is rated for an IP20 protection level, indicating a design focused on preventing the ingress of solid objects. It belongs to the N-Tron 300 series and is identified under the UNSPSC code as an 8-port Ethernet switch, utilizing Ethernet technology for communication.

Red Lion

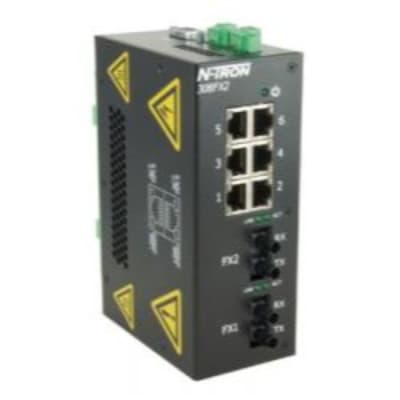

308FXE2-ST-40 on Advantage Electric Supply
