C48TD012 Red Lion Industrial Automation Components

C48TD012 on Advantage Electric Supply
Red Lion

Part#:C48TD012

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

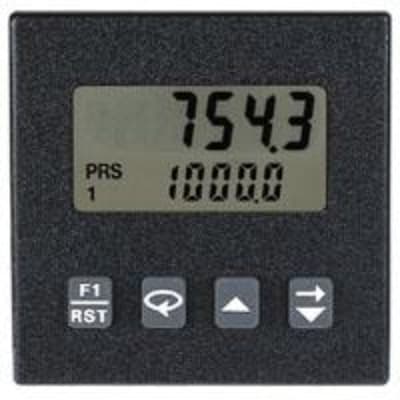

Red Lion C48TD012 is a dual-preset digital timer within the C48 series, designed with 2 user inputs and conforming to a 1/16 DIN (48x48mm) size for easy integration. It operates on a supply voltage of 24Vac or a DC range of 18-36Vdc, specifically 24Vdc, ensuring compatibility with various power sources. The dimensions are standardized at 1/16 DIN (W48mm x H48mm / 1.89" x 1.89"), and it boasts a degree of protection rated at IP65 NEMA 4X, suitable for demanding environments. This timer features 1 digital input for user input 1, another for START/STOP functions, and a third for user input 3, alongside 1 digital output of contact type NO, facilitating versatile control and connectivity options for automation applications.

Product Details

  • Primary brand
    Red Lion
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Digital inputs
    1 x digital input (Sink/Source) (USER INPUT 1) 1 x digital input (Sink/Source) (START/STOP) 1 x digital input (Sink/Source) (user input 3)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Product series / family name
    Process timers
  • Display
    2 rows x 6-digits reflective LCD display with black characters (top; 7.62mm high / bottom; 5.08mm high)
  • Functions
    Dual-preset digital timer
  • Digital outputs
    1 x digital output (contact type NO)
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 EN 61010-2-030 UL Listed RoHS compliant
  • Main function
    Timer (Digital)
  • Supply voltage (AC)
    24Vac
  • Order code / Manufacturer SKU
    C48TD012
  • Sub-range name
    C48 series
  • Design
    2 user inputs 1/16 DIN (48x48mm)
  • Degree of protection
    IP65 NEMA 4X

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
