G15C0000 Red Lion Industrial Automation Components

G15C0000 on Advantage Electric Supply
Red Lion

Part#:G15C0000

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion G15C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor use. It features an HMI operator touchscreen panel with a connection interface that includes 1 x RJ45 port for Ethernet, 2 x RJ11 ports for RS-232, and 1 x RJ45 port for RS-422 / RS-485 communication protocols. The unit operates on a supply voltage of 10-30Vdc, supporting both 12Vdc and 24Vdc systems. It is designed to function within an ambient air temperature range of -20 to +60 °C and offers a degree of protection rated at IP66 and NEMA 4X. The G15C0000 provides connection capacity for up to 8 modules and has a power consumption of typically 20 W, with a maximum of 60 W. Its electrical durability for the backlight is rated at 70,000 hours. Additionally, it includes an SD card slot for storage and features a screen brightness of 400cd/m2.

Product Details

  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc)
  • Degree of protection
    IP66 NEMA 4X
  • Electrical durability
    (Backlight) 70 000 hours
  • Main function
    HMI / Display unit
  • Display
    15" / 1024x768pixels (XGA) touchscreen LCD 16.7M colors display with backlight
  • Communication protocol
    RS-232 RS-422 RS-485 Ethernet
  • Order code / Manufacturer SKU
    G15C0000
  • Storage type
    SD card slot
  • Product series / family name
    HMIs (Human-Machine Interfaces)
  • Functions
    HMI operator touchscreen panel
  • Ambient air temperature for operation
    -20...+60 °C
  • Benefits
    Sleek full-color HMI touchscreens Versatile module and expansion options Rugged environmental specifications Industry-Leading protocol conversion Powerful integration functionality
  • Primary brand
    Red Lion
  • Sub-range name
    HMI Rugged Graphite series
  • Connection type
    1 x RJ45 port (Ethernet) 2 x RJ11 ports (RS-232) 1 x RJ45 port (RS-422 / RS-485)
  • Power consumption
    (Typical) 20 W(Maximum) 60 W
  • Mounting location
    Indoor
  • Design
    for indoor use only
  • Connection capacity
    8 x module slots
  • Compliant with standard(s)
    CE ANSI/ISA 12.12.01 IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL 61010-1 /-2-201 C22.2 No. 213-M1987; 157-92 RoHS compliant ABS UL Listed (Class I Division 2 Groups A/B/C/D) UL Listed (Class II Division 2 Groups
  • Brightness
    400cd/m2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

G15C0000 Related Documents

Red Lion - Industrial Automation Product Guide.pdfRed Lion - Graphite HMIs - Data Sheet.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

0 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

0 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

0 in stock

Manufacturer warranty

G15C0000 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare G15C0000 with other Industrial Automation Components products

Supply voltage (DC)

Degree of protection

Electrical durability

Main function

Display

Communication protocol

Order code / Manufacturer...

Storage type

Product series / family n...

Functions

Selected product

G15C0000
Backordered
G15C0000
Red Lion

Red Lion G15C0000 is an HMI / Display unit from the HMI Rugged Graphite series designed for indoor u...

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc)

Degree of protectionIP66 NEMA 4X

Electrical durability(Backlight) 70 000 hours

Main functionHMI / Display unit

Display15" / 1024x768pixels (XGA) t...

Communication protocolRS-232 RS-422 RS-485 Etherne...

Order code / Manufacturer SKUG15C0000

Storage typeSD card slot

Product series / family nameHMIs (Human-Machine Interfac...

FunctionsHMI operator touchscreen pan...

508TX-A
Backordered
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Degree of protection-

Electrical durability-

Main functionEthernet Switch

Display-

Communication protocolEthernet

Order code / Manufacturer SKU-

Storage type-

Product series / family nameEthernet switches

FunctionsIndustrial process control m...

E22LTA2N123
Backordered
E22LTA2N123
Eaton

E22LTA2N123 Eaton - Eaton E22 pushbutton, E22 Pushbutton, 22.5 mm, Non-Metallic Heavy-Duty, 40 mm, N...

Supply voltage (DC)-

Degree of protection-

Electrical durability-

Main function-

Display-

Communication protocol-

Order code / Manufacturer SKU-

Storage type-

Product series / family name-

Functions-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

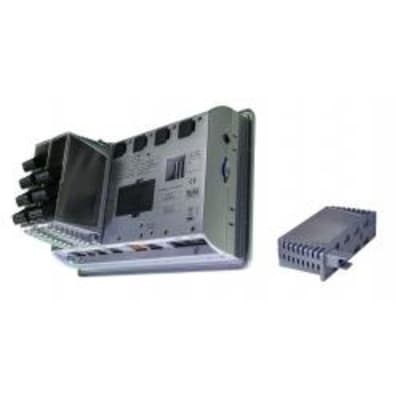

G15C1100 on Advantage Electric Supply
