G310S230 Red Lion Industrial Automation Components
Part#:G310S230
Manufacturer:Red Lion
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

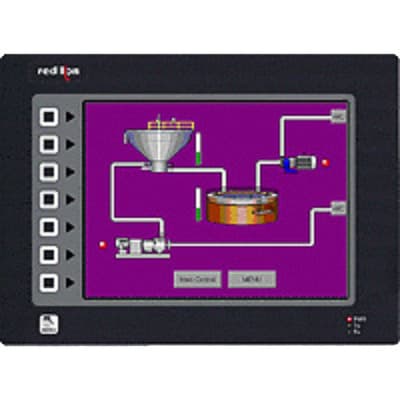

Red Lion G310S230 is an HMI / Display unit within the HMI G310 series, designed with a dual Ethernet capability for both indoor and outdoor applications. It features connection options including 2 x RJ45 ports for Ethernet, 2 x RJ11 ports for RS-232, 1 x RJ45 port for RS-422 / RS-485, and 1 x USB type A port for host connections. This unit supports communication protocols such as RS-232, RS-422, RS-485, and Ethernet. It operates on a supply voltage range of 19.2-28.8Vdc, specifically designed for 24Vdc systems. The ambient air temperature range for operation is from 0 to +50°C. It boasts a degree of protection rated at IP66 and NEMA 4X, ensuring durability in various environments. The memory capacity is 32MB (FLASH), and it includes a Compact Flash (CF) slot for storage. The display's brightness is rated at 1000cd/m2, and it is powered by a 32-bit ColdFire CPU.
Product Details
- Primary brand Red Lion
- Display 10.4" / 640x480pixels (VGA) TFT touchscreen LCD 32K colors display with backlight + 8-btns. keypad for on-screen menu access
- Communication protocol RS-232 RS-422 RS-485 Ethernet
- Order code / Manufacturer SKU G310S230
- Brightness 1000cd/m2
- Main function HMI / Display unit
- Functions HMI operator touchscreen panel
- Ambient air temperature for operation 0...+50 °C
- Contents Panel gasket Template for panel cutout Hardware packet for mounting unit into panel Terminal block for connecting power
- Processor type 32-bit ColdFire CPU
- Supply voltage (DC) 19.2-28.8Vdc (24Vdc)
- Degree of protection IP66 NEMA 4X
- Product replaced by G10S1000
- Storage type Compact Flash (CF) slot
- Sub-range name HMI G310 series
- Connection type 2 x RJ45 ports (Ethernet) 2 x RJ11 ports (RS-232) 1 x RJ45 port (RS-422 / RS-485) 1 x USB type A (host)
- Product series / family name HMIs (Human-Machine Interfaces)
- Memory capacity 32MB (FLASH)
- Design dual Ethernet for indoor / outdoor use
- Compliant with standard(s) CE IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant UL Hazardous locations approval
- Mounting location Outdoor Indoor
- Benefits Configured using Crimson software (2.0 version or laver) Up to 5 RS-232/RS422/RS-485 communications ports (2 RS-232 and 1 RS422/RS-485 on board / 1 RS-232 and 1 RS422/RS-485 on optional communications card) 10BaseT / 100BaseTx Ethernet port to network uni
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
