LPAX0600 Red Lion Industrial Automation Components

LPAX0600 on Advantage Electric Supply
Red Lion

Part#:LPAX0600

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

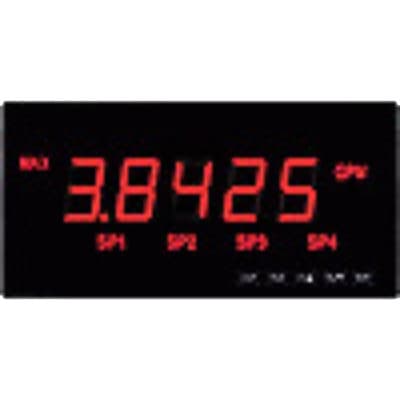

Red Lion LPAX0600, part of the LPAX series, is a display unit designed specifically for digital input modules. It features an LED display and supports a wide range of supply voltages. For DC supply, it operates on 18-36Vdc, ideally at 24Vdc. For AC supply, it accommodates a broad spectrum from 85-250Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac.

Product Details

  • Sub-range name
    LPAX series
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Primary brand
    Red Lion
  • Design
    for digital input modules
  • Functions
    LED Display
  • Product series / family name
    Process indicators
  • Supply voltage (AC)
    85-250Vac (100Vac / 110Vac / 120Vac / 200Vac / 208Vac / 220Vac / 230Vac / 240Vac)
  • Order code / Manufacturer SKU
    LPAX0600
  • Main function
    Display unit
  • Display
    1 row x 6-digits red characters (38mm / 1.5" high) LED display
  • Compliant with standard(s)
    CE EN 61010-1 UL Listed RoHS compliant
  • Benefits
    Large LED display readable to 70ft Various analog input modules Various output option modules Programmable user inputs Programmable function keys Universal AC/DC-powered Crimson 2 programming software NEMA 4x / IP65

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
