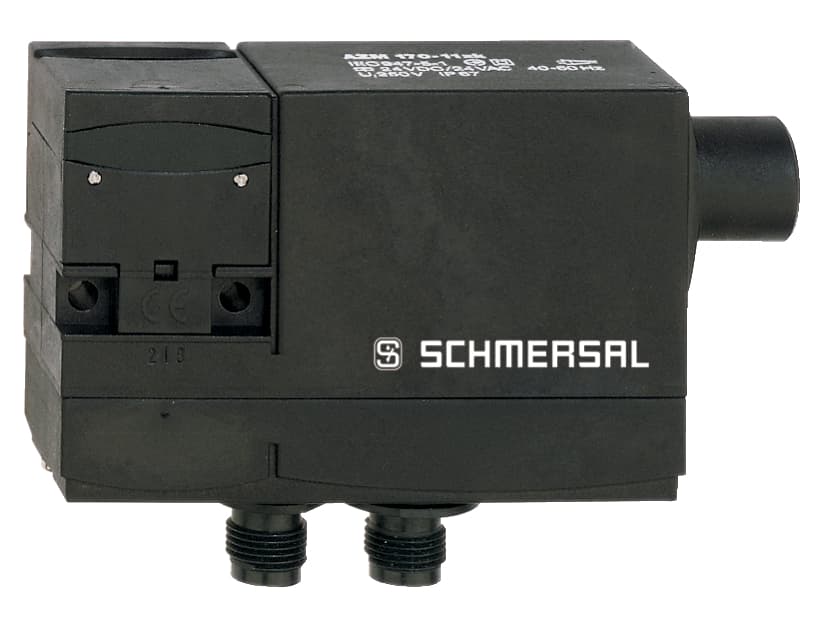

AZM 170-02ZRKA-ST 24VAC/DC Schmersal Safety Switch Interlocks
Part#:AZM 170-02ZRKA-ST 24VAC/DC
Alt. Part#:101141422
Manufacturer:Schmersal
Category:Safety Switch Interlocks
Product Lifecycle:Active
Product description
Solenoid interlocks; Connector M12, 4-pole; Manual release; Thermoplastic enclosure; Double-insulated; Compact design; 90 mm x 84 mm x 30 mm; Interlock with protection against incorrect locking.; Long life; High holding force
Product Details
- Coding level according to ISO 14119 Low
- Gross weight 275 g
- Number of safety contacts 2
- Thermal test current 4 A
- Switching principle Creep circuit element
- Power to lock Yes
- Number of auxiliary contacts 1
- Degree of protection IP67 to EN 60529
- Ambient temperature, minimum -25 °C
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Material of the contacts, electrical Silver
- Mechanical life, minimum 1,000,000 Operations
- Rated insulation voltage Ui 250 V
- Current, Utilisation category AC-15 4 A
- Voltage, Utilisation category DC13 24 VDC
- Number of actuating directions 2
- Latching force 30 N
- Length of sensor 30 mm
- Electrical power consumption, maximum 10 W
- Voltage, Utilisation category AC15 230 VAC
- Manual release Yes
- positive break travel 11 mm
- Positive break force, minimum 17 N
- Ambient temperature, maximum +60 °C
- Switching element Opener (NC)
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Actuating speed, maximum 2 m/s
- Rated impulse withstand voltage Uimp 2.5 kV
- Switching frequency 1,000 /h
- Active principle electromechanical
- Clamping force in accordance with ISO14119 Fzh 1,000 N
- Height of sensor 75.5 mm
- Note (Switching element) Change-over contact with double break, type Zb or 2 NC contacts, with galvanically separated contact bridges
- Standards EN 60947-5-1, BG-GS-ET-19
- Terminal Connector Connector plug M12, 4-pole, (A-coding), Connector plug M12, 4-pole, (B-coding)
- Width of sensor 90 mm
- Rated control voltage 24 VAC/DC
- Current, Utilisation category DC13 4 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
