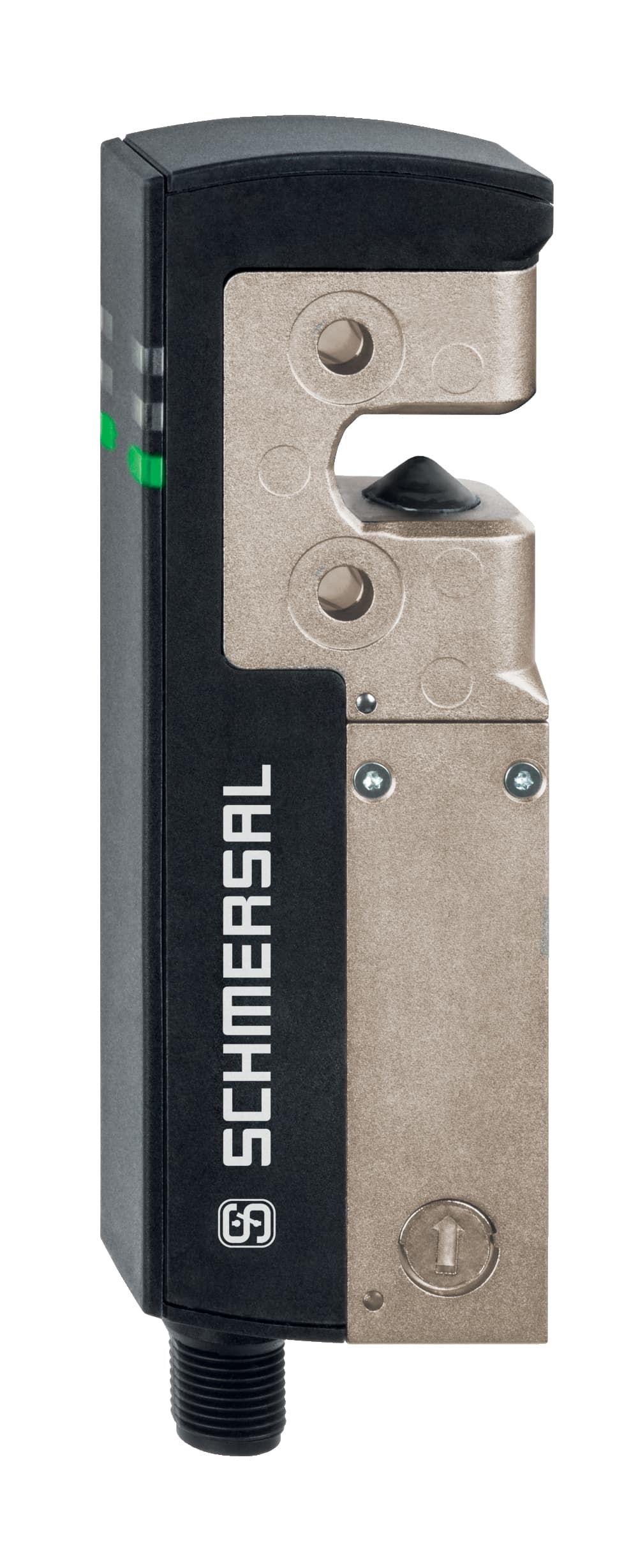

AZM40Z-I1-ST-1P2P-PH Schmersal Safety Switches

Product Details

• Integral System Diagnostics, status
  Yes
• Latching force
  40 N
• Active principle
  RFID
• Response time safety outputs in case of switch-off by safety inputs, maximum
  1.5 ms
• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 1 mm
• Operating current
  1,200 mA
• Current, Utilisation category DC13
  0.05 A
• Mechanical life, minimum
  200,000 Operations
• Width of sensor
  40 mm
• general information
  Individual coding
• Short circuit detection
  Yes
• Protection rating
  III
• Switching frequency, maximum
  0.3 Hz
• Versions
  short-circuit proof, p-type
• Time to readiness, maximum
  4,000 ms
• Latching
  Yes
• Clamping force in accordance with ISO14119 Fzh
  2,000 N
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529
• Rated impulse withstand voltage Uimp
  0.8 kV
• Current consumption solenoid at switching moment, peak
  600 mA / 100ms
Voltage drop Ud, maximum
2 V
Gross weight
305.5 g
Short-circuit recognition
Yes
Interlocking principle
bistable
Ensured switch distance OFF Sar
8 mm
Storage and transport temperature, maximum
+85 °C
Rated operating voltage
24 VDC - 15 % / + 10 % (stabilised PELV)
Enclosure material
Glass-fibre, reinforced thermoplastic and light-alloy diecast
Coding level according to ISO 14119
High
Safety functions
Yes
Series-wiring
Yes
Clamping force, maximum Fmax
2,600 N
Ensured switch distance ON Sao
1 mm
Type of the fixing screws
DESIGN_MOUNTING_SCREWS11111111111111111112
Length of sensor
119.5 mm
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Duration of risk, maximum
200 ms
Manual release
Yes
Actuating speed, maximum
0.5 m/s
Terminal Connector
Connector M12, 8-pole, A-coded
Ambient temperature, minimum
+0 °C
Restistance to shock
30 g / 11 ms
Overvoltage category
III
No-load supply current I0
100 mA
Reaction time, maximum
100 ms
Guard locking monitored
Yes
Number of safety contacts
2
Height of sensor
20 mm
Storage and transport temperature, minimum
-40 °C
Degree of pollution to VDE 0100
3
Classification ZVEI CB24I, Source
C2
Voltage, Utilisation category DC13
24 VDC
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Current, Utilisation category DC12
0.05 A
Voltage, Utilisation category DC12
24 VDC
Classification ZVEI CB24I, Sink
C1, C2
Current consumption at 24V
5 mA
Ambient temperature, maximum
+55 °C
Rated operating current (safety outputs)
250 mA
Required rated short-circuit current to EN 60947-5-1
100 A
Current leakage Ir
0.5 mA
Rated insulation voltage Ui
32 VDC
Note
Cable length and cable section alter the voltage drop depending on the output current
