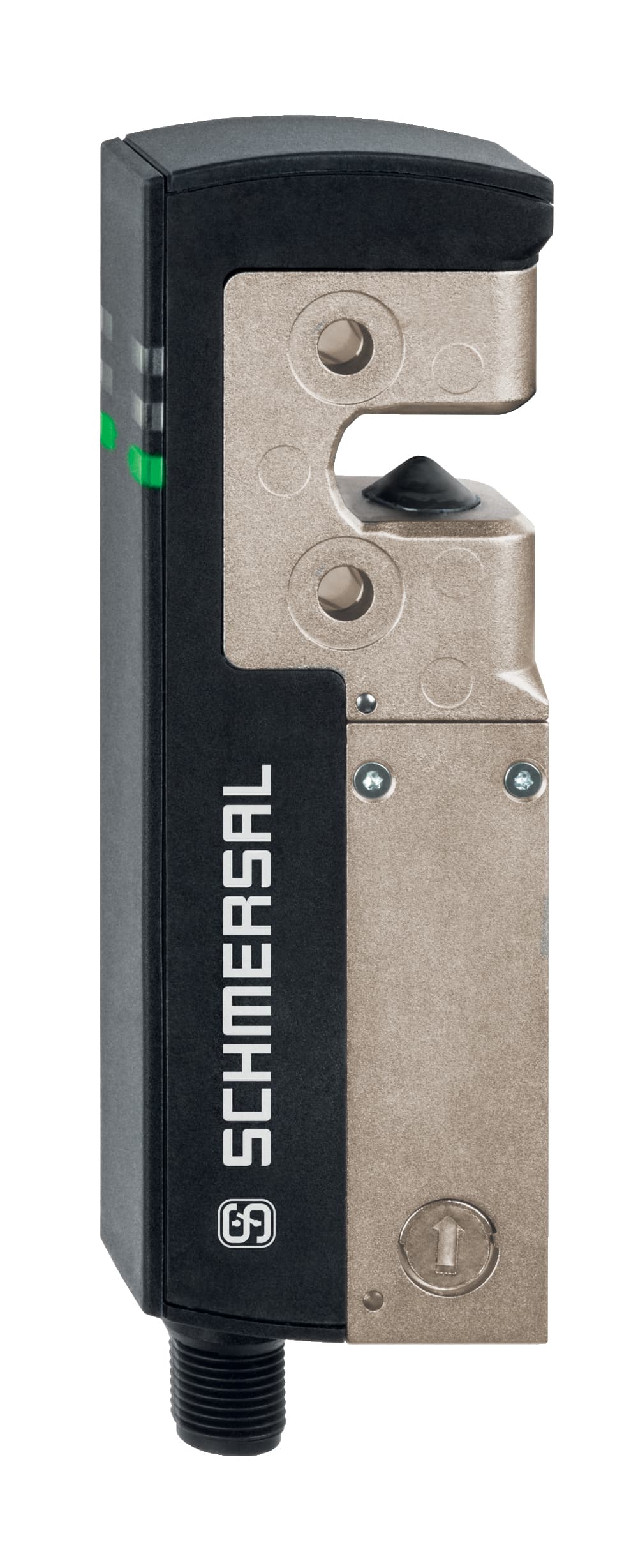

AZM40Z-I2-ST-1P2P-PH Schmersal Safety Switches

Product Details

• Enclosure material
  Glass-fibre, reinforced thermoplastic and light-alloy diecast
• Short-circuit recognition
  Yes
• Integral System Diagnostics, status
  Yes
• Ensured switch distance OFF Sar
  8 mm
• Storage and transport temperature, minimum
  -40 °C
• Rated operating voltage
  24 VDC - 15 % / + 10 % (stabilised PELV)
• Voltage drop Ud, maximum
  2 V
• general information
  Individual coding, multiple teaching
• Coding level according to ISO 14119
  High
• Interlocking principle
  bistable
• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 1 mm
• Degree of pollution to VDE 0100
  3
• Switching frequency, maximum
  0.3 Hz
• Current leakage Ir
  0.5 mA
• Time to readiness, maximum
  4,000 ms
• Manual release
  Yes
• Latching force
  40 N
• Terminal Connector
  Connector M12, 8-pole, A-coded
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529
• Overvoltage category
  III
Note
Cable length and cable section alter the voltage drop depending on the output current
Voltage, Utilisation category DC13
24 VDC
Active principle
RFID
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Mechanical life, minimum
200,000 Operations
Actuating speed, maximum
0.5 m/s
Length of sensor
119.5 mm
Protection rating
III
Required rated short-circuit current to EN 60947-5-1
100 A
Classification ZVEI CB24I, Source
C2
Current, Utilisation category DC13
0.05 A
Duration of risk, maximum
200 ms
Short circuit detection
Yes
Clamping force in accordance with ISO14119 Fzh
2,000 N
Width of sensor
40 mm
Storage and transport temperature, maximum
+85 °C
Rated insulation voltage Ui
32 VDC
Current consumption solenoid at switching moment, peak
600 mA / 100ms
Voltage, Utilisation category DC12
24 VDC
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Reaction time, maximum
100 ms
Guard locking monitored
Yes
Number of safety contacts
2
Gross weight
303.9 g
Series-wiring
Yes
Latching
Yes
Type of the fixing screws
DESIGN_MOUNTING_SCREWS11111111111111111112
Restistance to shock
30 g / 11 ms
Operating current
1,200 mA
Rated operating current (safety outputs)
250 mA
Safety functions
Yes
Ensured switch distance ON Sao
1 mm
Height of sensor
20 mm
Rated impulse withstand voltage Uimp
0.8 kV
Classification ZVEI CB24I, Sink
C1, C2
Current, Utilisation category DC12
0.05 A
Clamping force, maximum Fmax
2,600 N
Ambient temperature, minimum
+0 °C
Ambient temperature, maximum
+55 °C
No-load supply current I0
100 mA
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Versions
short-circuit proof, p-type
Current consumption at 24V
5 mA
