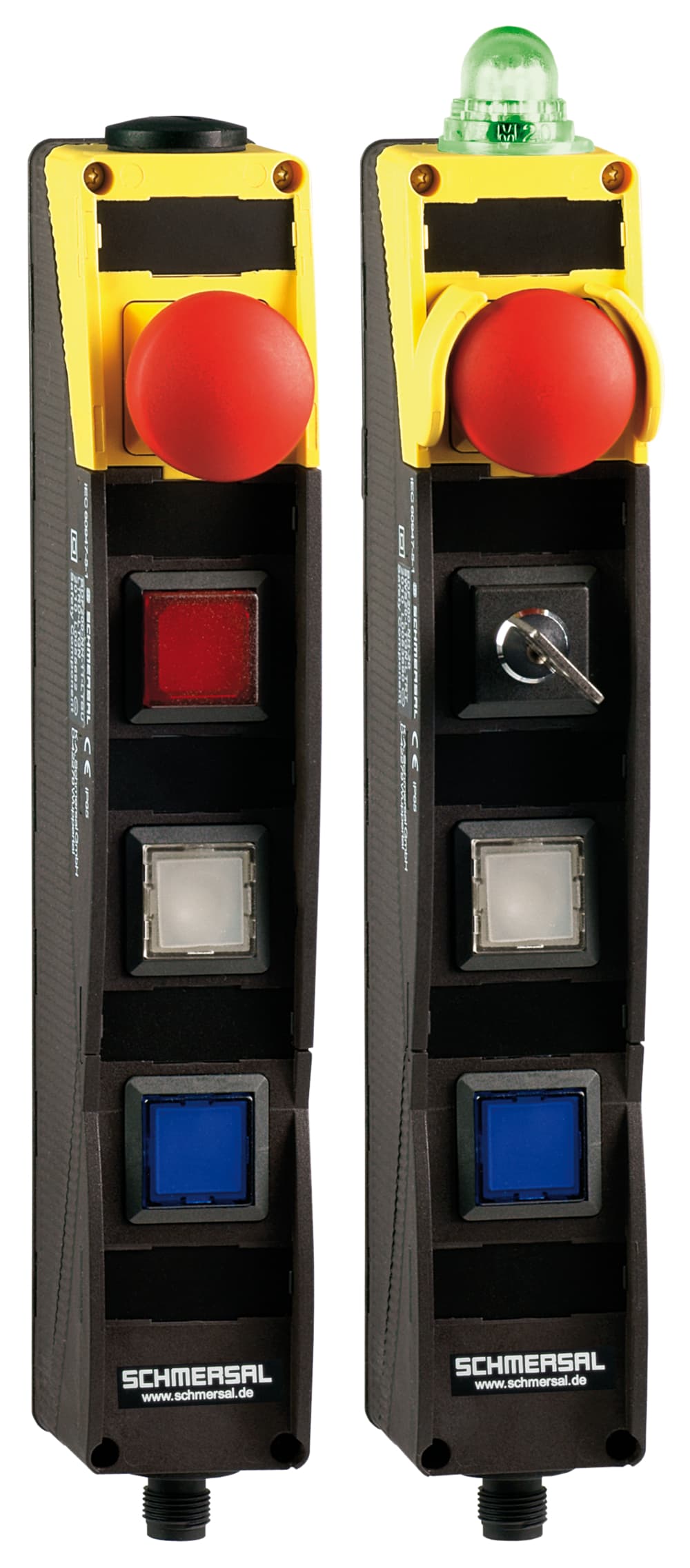

BDF200-ST1-AS-NH-LT-LT-LT-G24-2875 Schmersal Electronic Components

Product Details

• Gross weight
  280 g
• Indicator lamp
  Yes
• Degree of protection
  IP65
• Ambient temperature, minimum
  -25 °C
• Degree of pollution to IEC/EN 60664-1
  3
• AS-i Input, Channel 1 (Safety-Slave)
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Input, DI 1 (A/B Slave)
  Command device Position 3
• AS-i Input module address
  0
• Positions used, position 2
  Illuminated pushbutton, color exchangeable
• Depth
  252.5 mm
• Protection rating
  II
• AS-i Current consumption, maximum
  150 mA
• AS-i Output, DO 0 (Safety-Slave)
  Indicator lamp G24 red
• AS-i Input, DI 2 (A/B Slave)
  Command device Position 2
• AS-i AS-i Parameter bits (A/B Slave), P0 ... P3
  No function
• Reaction time, maximum
  100 ms
• Mechanical life, Emergency-Stop button
  100,000 Operations
• Storage and transport temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  32 VDC
• AS-i Profile (Safety-Slave)
  S-7.B.F.F
AS-i Input, Channel 2 (Safety-Slave)
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i AS-i Parameter bits (Safety-Slave), P0 ... P3
No function
AS-i Output, DO 3 (A/B Slave)
No Function
Climatic stress
DIN EN 60068
Positions used, position 3
Illuminated pushbutton; color exchangeable
Storage and transport temperature, maximum
+85 °C
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Output, DO 2 (Safety-Slave)
No Function
AS-i Output, DO 1 (A/B Slave)
Illuminated signal position 3
Standards
IEC 61508, EN 60947-5-1, EN ISO 13850
Height
69 mm
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Operating voltage, minimum
18 VDC
AS-i Output, DO 1 (Safety-Slave)
Indicator lamp G24 green
AS-i Output, DO 0 (A/B Slave)
Illuminated signal position 4
Note
Both AS-i slaves can be enabled and disabled through the integrated DIP switch. The addressing must take place via the M12 connector.
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Width
40 mm
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm / 5 g
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
AS-i Version (A/B Slave)
V 3.0
AS-i Input, DI 0 (A/B Slave)
Command device Position 4
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Positions used, position 4
Illuminated pushbutton, color exchangeable
Mechanical life, Command devices
1,000,000 Operations
Ambient temperature, maximum
+65 °C
Overvoltage category
III
AS-i Version (Safety-Slave)
V 3.0
AS-i Output, DO 3 (Safety-Slave)
No Function
AS-i Input, DI 3 (A/B Slave)
Command device Position 2
Positions used, position 1
Emergency stop pushbutton
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Restistance to shock
15 g / 11 ms
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Profile (A/B Slave)
S-7.A.7.F
AS-i Output, DO 2 (A/B Slave)
Illuminated signal position 2
