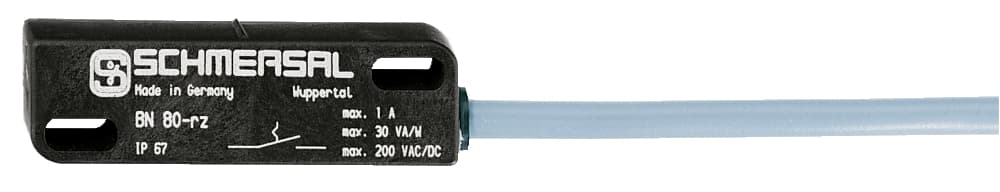

BN 80-10Z Schmersal Electronic Components
Part#:BN 80-10Z
Alt. Part#:101055844
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Magnetic reed switch; Non-contact principle; 1 Reed contakts; Long life; Flat design; Actuating distance up to 60 mm depending on actuating magnet and version; 44 mm x 13 mm x 9 mm; Thermoplastic enclosure; Actuating surface marked by protrusion
Product Details
- Enclosure material Glass-fibre, reinforced thermoplastic
- Terminal Connector Cable
- Ambient temperature, maximum +75 °C
- Bounce duration, maximum 0.5 ms
- Resistant to vibration 15 g, on sine wave oscillation
- Switching capacity, maximum 10 VA
- Actuating element Magnet
- Active area Plastic
- Notice (Switch distance Sn) Actuating distance up to 32 mm depending on version and actuating magnet
- Length of cable 1 m
- Restistance to shock 15 g, on sine wave oscillation
- Height of sensor 13 mm
- Switching current, maximum 0.5 A
- Active principle Magnetic drive
- Actuating panels lateral
- Material of the Cable mantle PVC
- Ambient temperature, minimum -25 °C
- Housing construction form Block
- Mechanical life, minimum 1,000,000,000 Operations
- Length of sensor 9 mm
- Voltage type AC (alternating current), DC (direct current)
- Switching element Normally open contact (NO)
- Switch distance Sn 0 mm … 32 mm, BP 8 = 3 … 8 mm, BP 10 = 6 … 12 mm
- Gross weight 25 g
- Width of sensor 44 mm
- Switching voltage, maximum 250 VDC
- Versions Reed contacts
- Number of shutters 1
- Wire cross-section 0.25 mm2
- Degree of protection IP67
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
