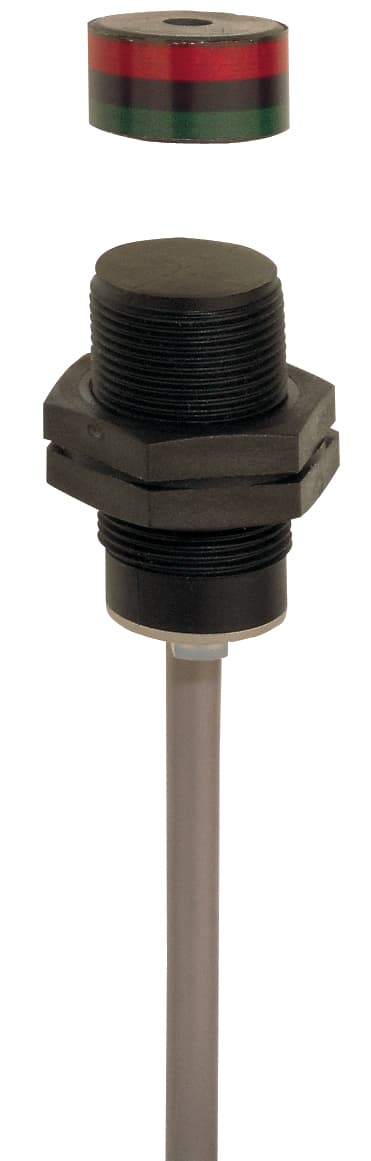

BNS 180-12Z-2187-2 3,0M Schmersal Electronic Components
Part#:BNS 180-12Z-2187-2 3,0M
Alt. Part#:101184069
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Safety sensors; Magnetic safety sensors; Thermoplastic enclosure; Suitable for food processing industry only in combination with BP 15 SS; Particularly large switching distance; Ø M 18 x 1; Long life; no mechanical wear; Insensitive to transverse misalign
Product Details
- Restistance to shock 30 g / 11 ms
- Number of shutters 1
- Actuator switch distance Actuating magnet BP 8, Sao: 10 mm, Actuating magnet BP 15 SS, Sao: 20 mm, Actuating magnet BP 10, Sao: 20 mm
- Degree of protection IP67
- Installation conditions (mechanical) quasi-flush
- Direction of motion Head-on to the active surface
- Length of sensor 36 mm
- Voltage type AC (alternating current), DC (direct current)
- Active principle Magnetic drive
- Actuating element Magnet
- Storage and transport temperature, maximum +70 °C
- Coding level according to ISO 14119 None
- Ensured switch distance OFF Sar 22 mm, 32 mm
- ISO thread of the sensor M18
- Switching capacity, maximum 3 W
- Number of safety contacts 2
- Number of cable wires 6
- Material of the Cable mantle PVC
- Wire cross-section 23 AWG
- Standards IEC 60947-5-3, BG-GS-ET-14
- Ensured switch distance ON Sao 10 mm, 20 mm
- Ambient temperature, maximum +70 °C
- Switching frequency, maximum 5 Hz
- Enclosure material Glass-fibre, reinforced thermoplastic
- Terminal Connector Cable
- Storage and transport temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Number of openers 2
- Ambient temperature, minimum -25 °C
- Length of cable 3 m
- Switching current, maximum 0.25 A
- Gross weight 140 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
