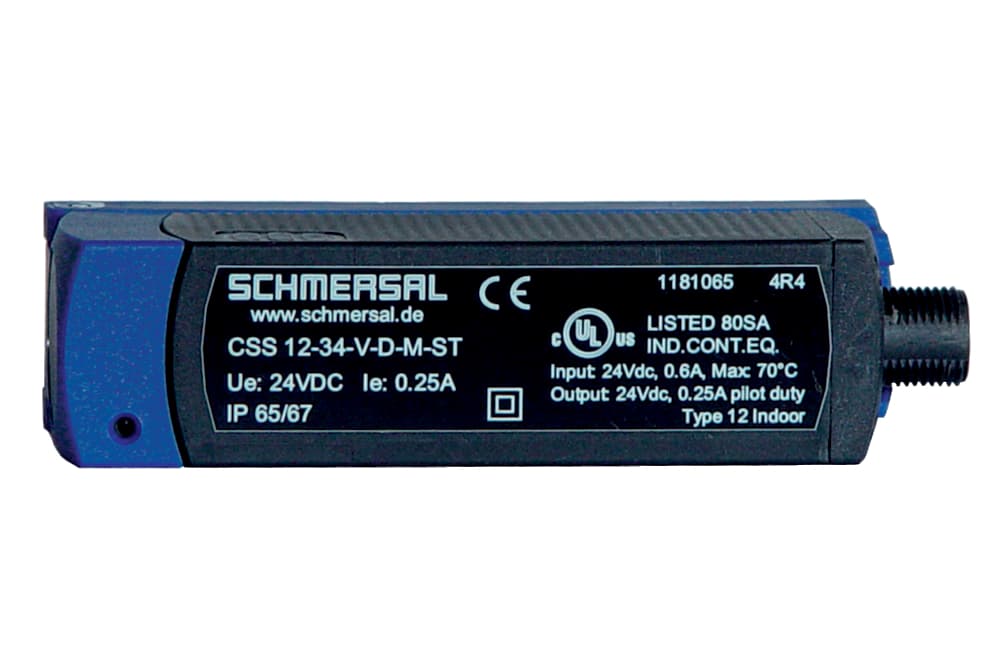

CSS12-34F1-V-D-M-ST Schmersal Electronic Components

Product Details

• Enclosure material
  Glass-fibre, reinforced thermoplastic
• Safety functions
  Yes
• Note (Repeat accuracy R)
  Axial offset: the front face allows for an axial misalignment (z) of max. ± 8 mm (see figure: operating principle).
• Protection rating
  II
• Ambient temperature, minimum
  -25 °C
• Output current, (fail-safe output), maximum
  0.25 A
• Voltage, Utilisation category DC12
  24 VDC
• Storage and transport temperature, minimum
  -25 °C
• Standards
  IEC 60947-5-3
• Diagnostic output
  Yes
• Hysteresis (Switch distance), maximum
  1.5 mm
• Active area
  front side
• Note
  The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current
• Voltage type
  DC (direct current)
• Active principle
  inductive
• Integral System Diagnostics, status
  Yes
• Actuating panels
  Actuation from top
• Ensured switch distance OFF Sar
  15 mm, 16 mm, 18 mm
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Required rated short-circuit current to EN 60947-5-1
  100 A
Rated impulse withstand voltage Uimp
0.8 kV
Voltage, Utilisation category DC13
24 VDC
Gross weight
147.5 g
Input for reset pushbutton, with edge monitoring
Yes
Number of fail-safe digital outputs
2
Length of sensor
35 mm
Restistance to shock
30 g / 11 ms
Operating current
600 mA
Current, Utilisation category DC12
0.05 A
EMC rating
IEC 61000-6-2
Reaction time, maximum
30 ms
Duration of risk, maximum
60 ms
Number of semi-conductor outputs with signaling function
1
Switch distance
10 mm, 12 mm, 15 mm
Width of sensor
27 mm
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Rated operating current (safety outputs)
250 mA
Current leakage Ir
0.5 mA
Housing construction form
Block
Short circuit detection
Yes
Number of LEDs
3
Repeat accuracy R R
0.5 mm
Height of sensor
108.2 mm
Overvoltage category
III
Switching frequency, approx.
3 Hz
Current, Utilisation category DC13
0.05 A
Short-circuit recognition
Yes
Installation conditions (mechanical)
not flush
Number of Series-wiring of sensors
31
Terminal Connector
Connector plug M12, 8-pole
Ambient temperature, maximum
+70 °C
Degree of pollution to VDE 0100
3
Interfering radiation
IEC 61000-6-4
Versions
p-type
Sensor topology
Sensor for series wiring
Cascadable
Yes
Actuator switch distance
Actuator CST 34-V-1: 12 mm, Actuator CST 34-S-2: 10 mm, Actuator CST 34-S-3: 15 mm
Ensured switch distance ON Sao
10 mm, 13 mm, 8 mm
Storage and transport temperature, maximum
+85 °C
Rated insulation voltage Ui
32 VDC
No-load supply current I0
100 mA
Voltage drop Ud, maximum
5 V
