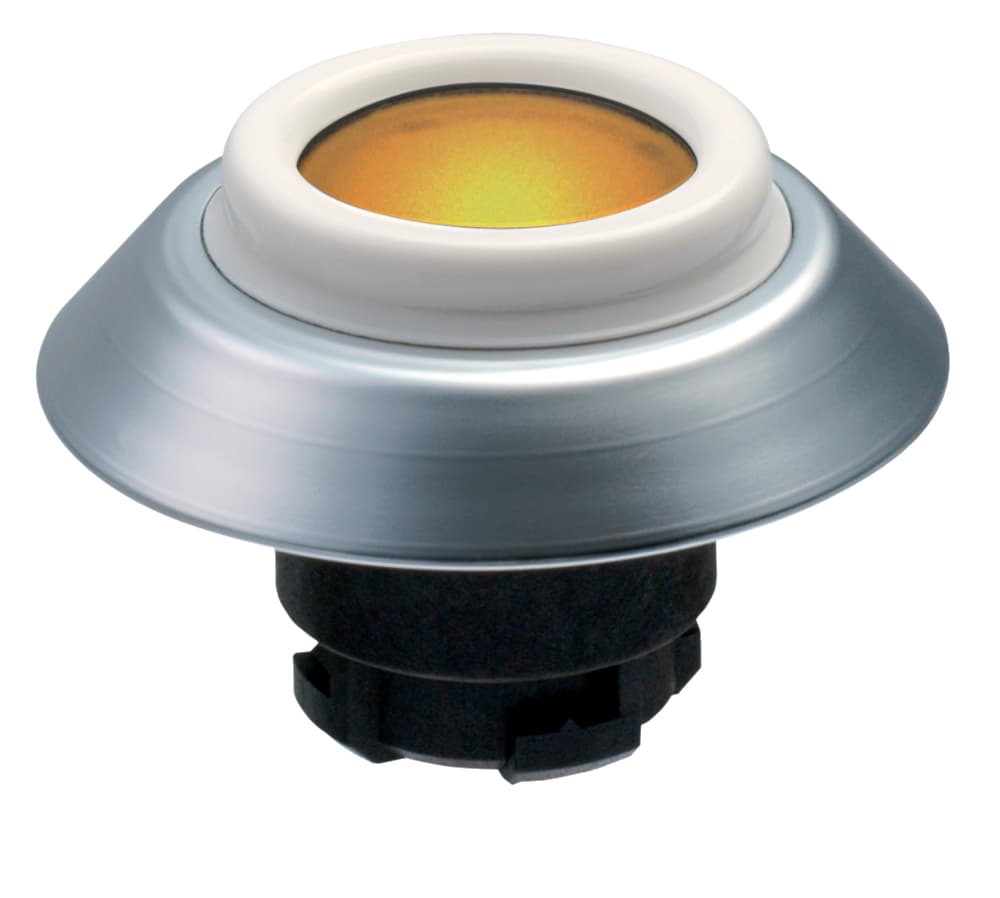

NDLBL/WS Schmersal Pushbuttons
Part#:NDLBL/WS
Alt. Part#:103009265
Manufacturer:Schmersal
Category:Pushbuttons
Product Lifecycle:Active
Product description
Command and signalling devices; "N" program
Product Details
- Degree of protection IP67, IP69K
- Ambient temperature, minimum -25 °C
- Diameter of the front ring 44.5 mm
- Ambient temperature, maximum +80 °C
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Spacing 50 x 50 mm
- Thickness of the front panel, maximum 6 mm
- Diameter total 44.5 mm
- Diameter of touch surface 27 mm
- Thickness, of the front panel, minimum 1.5 mm
- Diameter hole 22.3 mm
- Tightening torque of the screw 0.6 Nm
- Illuminable Yes
- Height 11 mm
- Mounting Mounting flange ELM
- Actuating stroke 5 mm
- Fully insulated Yes
- Probing possible Yes
- Sealing type Membrane, Lip gaskets
- Mounting flange Yes
- Gross weight 30 g
- Standards EN 60947-5-1, IEC/EN 60947-1
- Unlocking without
- Versions Embeddable button - Front plate mounting
- Colour of the front ring Silver
- Design Round
- Colour of the operating element White
- Colour of the bellows Blue
- Material of the front ring ABS, chrome-plated
- Material of the operators ABS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NDLBL/WS on Advantage Electric Supply is $33.00. Order now.
