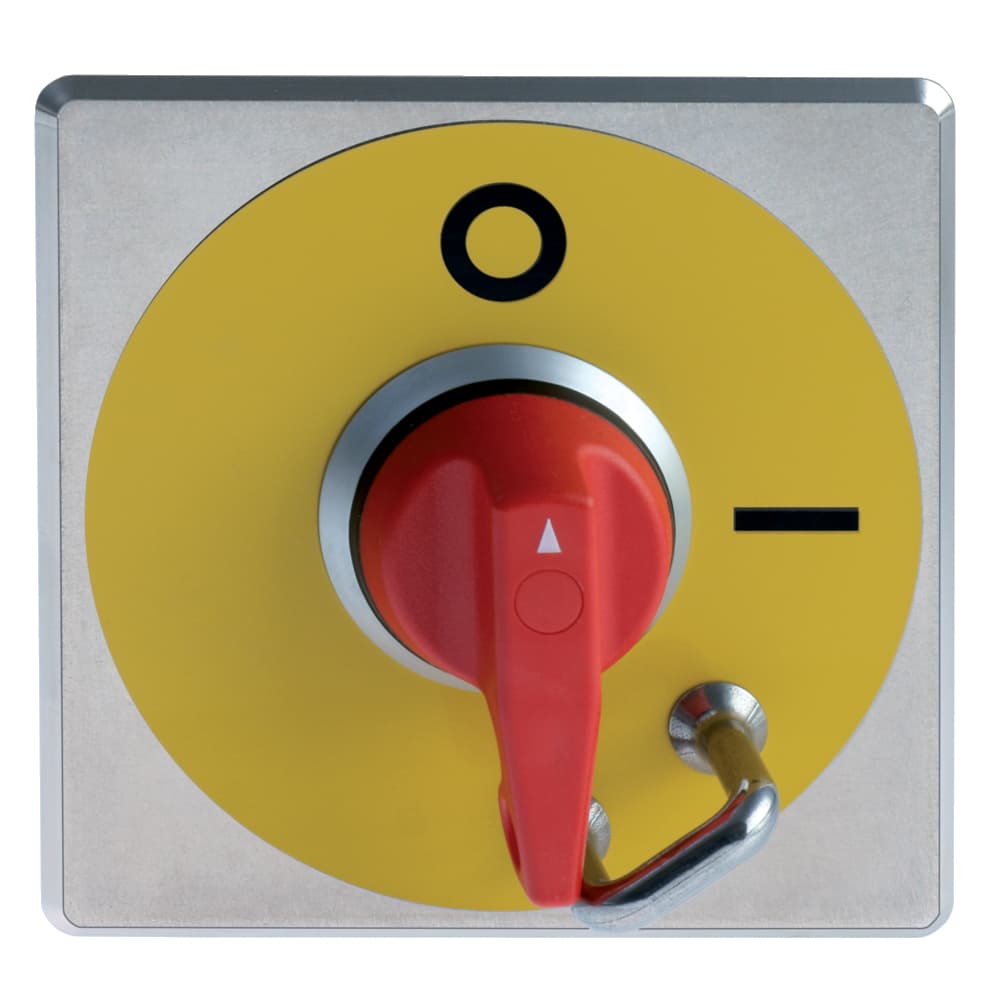

NHSNH16/4-POL Schmersal Electronic Components

Product Details

• Material of the mounting plate
  Stainless steel (V4A)
• Mechanical life, minimum
  1,000,000 Operations
• Tightening torque of the screw
  0.6 Nm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Colour of the identification plate
  Yellow
• Colour of the handle
  Red
• Fully insulated
  Yes
• Length
  72 mm
• Diameter hole
  22.3 mm
• Switching capacity, AC-23
  7,500 W
• Material of the bracket
  Stainless steel (V4A)
• Colour of the front ring
  Silver
• Mounting depth
  85 mm
• Diameter of the knob
  39 mm
• Degree of protection
  IP67, IP69K
• Colour of the bracket
  Silver
• Latching
  Yes
• Mounting
  mounting flange
• Diameter of the front ring
  44.5 mm
• Thermal test current
  20 A
Versions
Main switch - Front plate mounting
Unlocking
Rotating unlatcher
Width
100 mm
Spacing
100 x 100 mm
Material of the front ring
ABS, chrome-plated
Standards
IEC 60947
Number of switch positions
2
Height
29 mm
Thickness, of the front panel, minimum
1.5 mm
Sealing type
Membrane, Lip gaskets
Material of the identification label
Stainless steel (V4A)
switching angle
90 °
Cable section, minimum
1 mm², rigid, 1 mm², flexible
Terminal Connector
Screw connection
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Length of the handle
52 mm
Thickness of the front panel, maximum
6 mm
Ambient temperature, maximum
+80 °C
Ambient temperature, minimum
+0 °C
Material of the operators
ABS
Gross weight
220 g
Cable section, maximum
2.5 mm², rigid, 2.5 mm², flexible
Length x Width x Height
Diameter Ø: 49 mm
Switching capacity, AC-3
5,500 W
