NWSE5K Schmersal Selector Switches
Part#:NWSE5K
Alt. Part#:101174636
Manufacturer:Schmersal
Category:Selector Switches
Product Lifecycle:Active
Product description

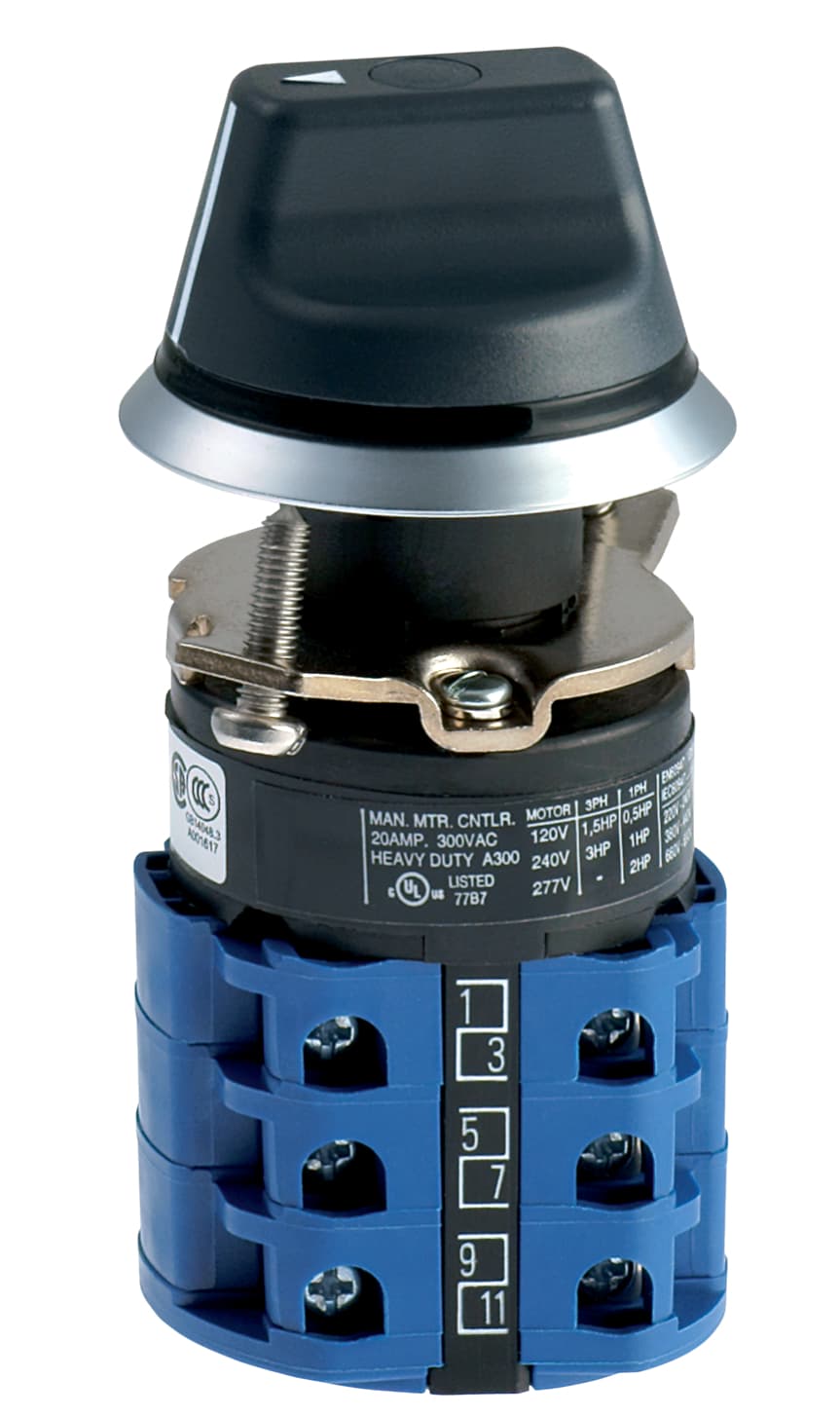

NWSE5K Schmersal - Step Switch from N Series (IP69K)
Product Details
- Ambient temperature, minimum +0 °C
- Ambient temperature, maximum +80 °C
- Switching capacity, AC-3 5,500 W
- Switching capacity, AC-23 7,500 W
- Degree of protection IP67, IP69K
- Rated insulation voltage Ui 690 V
- Thermal test current 20 A
- Length of the handle 28 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Diameter hole 22.3 mm
- Thickness of the front panel, maximum 6 mm
- Mounting depth 69.5 mm
- Spacing 50 x 50 mm
- Diameter of the front ring 44.5 mm
- Thickness, of the front panel, minimum 1.5 mm
- Diameter of the knob 39 mm
- switching angle 60 °
- Height 26 mm
- Number of switch positions 5
- Mounting mounting flange
- Tightening torque of the screw 0.6 Nm
- Terminal Connector Screw connection
- Latching Yes
- Fully insulated Yes
- Standards IEC 60947-3
- Toggle short
- Material of the operators ABS
- Sealing type Membrane, Lip gaskets
- Colour of the front ring Silver
- Gross weight 140 g
- Material of the front ring ABS, chrome-plated
- Colour of the handle Grey
- Versions Toggle
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of NWSE5K on Advantage Electric Supply is $197.00. Order now.
